11 Module 4: PrognosiX Extended Workflow

This extended PrognosiX workflow reflects the package’s newer prognosis capabilities and supports full clinical prognostic-model development and validation. It adds competing risks, time-dependent ROC comparison, multi-time calibration, repeated cross-validation, C-index comparison, Bayesian tuning, AIC-guided selection, overall calibration, external-validation diagnostics, and deployment.

11.1 Execution Notes

This workflow is computationally intensive and uses optional packages that are checked only when their methods are requested. Verify paths, outcome definitions, prediction horizons, the output root, and dependencies before running. Keep development and validation independent throughout, report uncertainty with point estimates, and distinguish exploratory comparisons from prespecified confirmatory analyses.

11.2 Step-by-step Workflow

The workflow is divided into short stages. Each note explains the purpose, key checks, and interpretation limits. Generated plots and tables appear directly below their code chunk.

11.2.1 About this chapter

Audience. Users who already have a working PrognosiX pipeline and want the ten production extensions on top of it.

Input. Reads data/PMID37633276_DIA_plasmaproomic.xlsx (sheet Table S1B) directly.

The chapter runs end to end as one session:

Environment and configuration
Data preparation (move time/status to info.data)
Feature selection (ONLY on training set)
Algorithm benchmarking and hyperparameter tuning
Core model evaluation

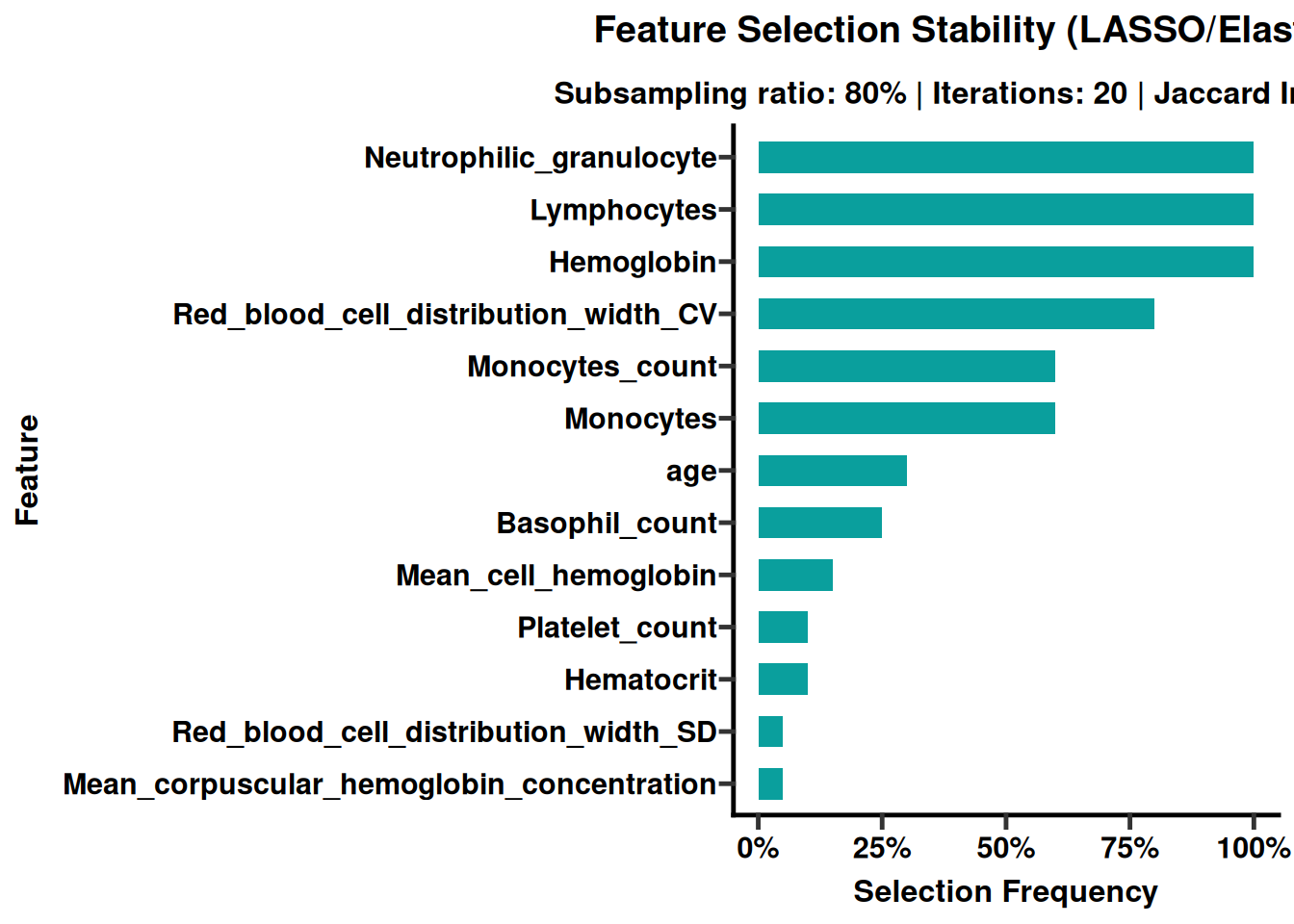

- Feature stability (LASSO bootstrapping)

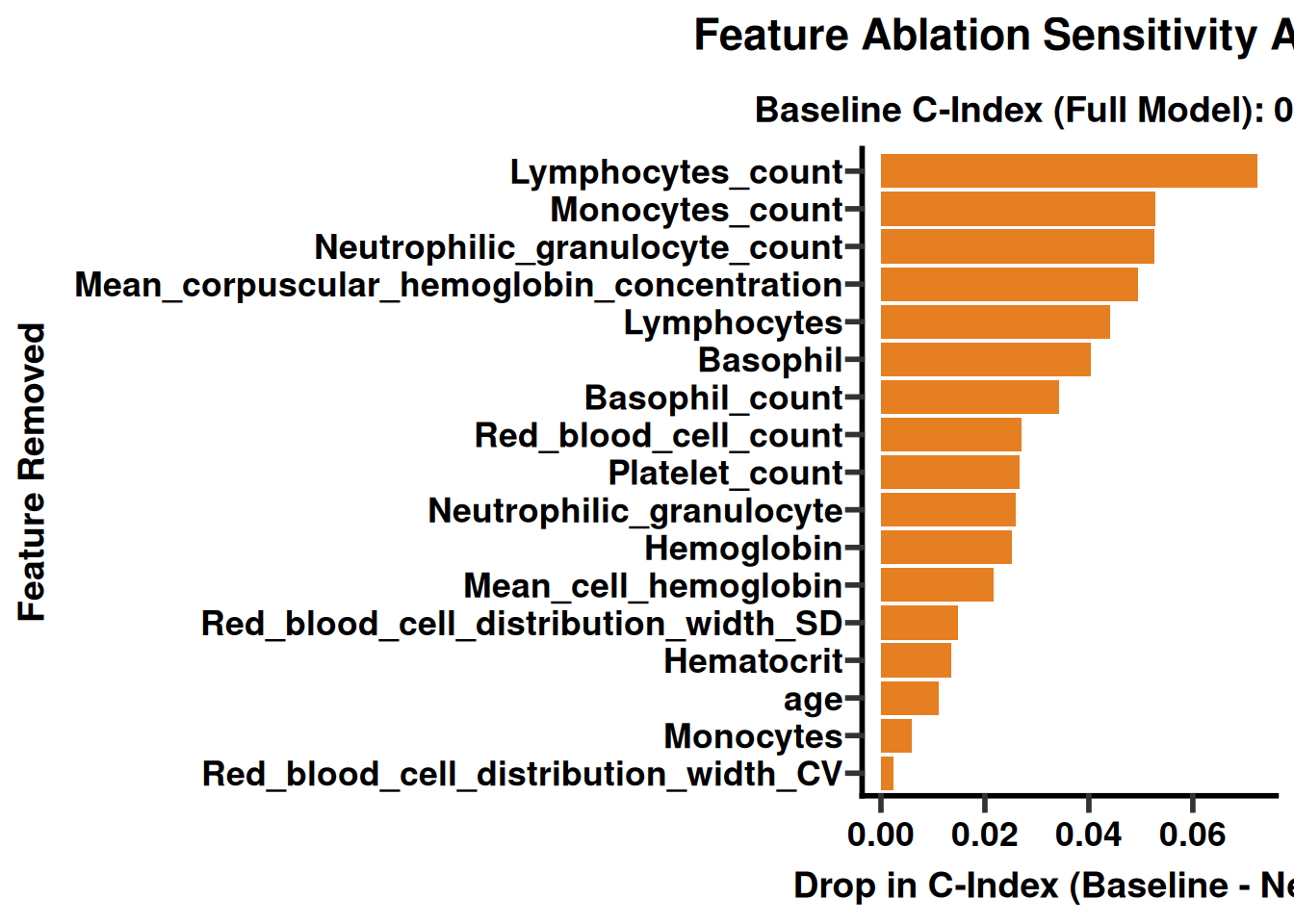

- Feature ablation (drop each feature and measure C-index drop)

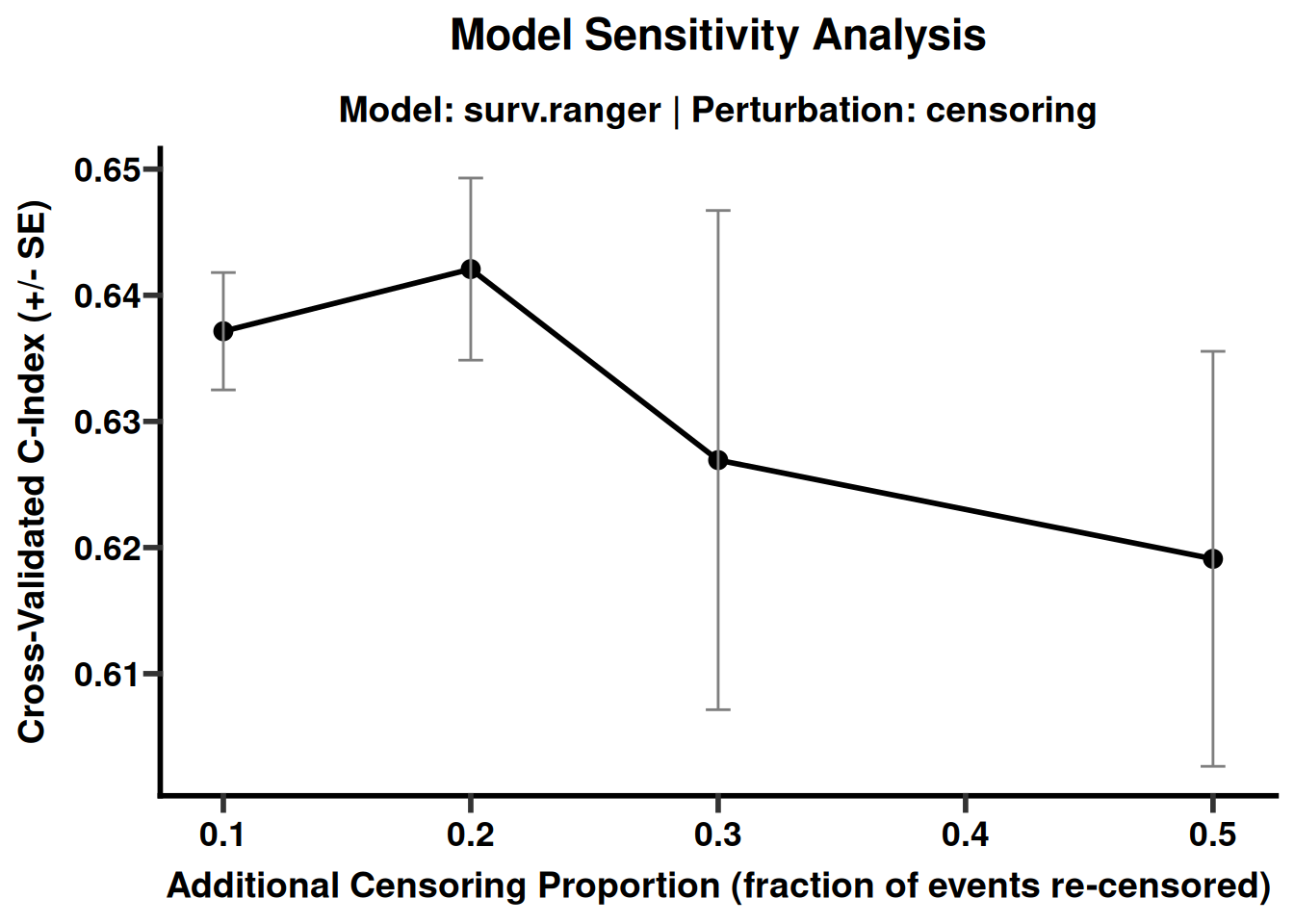

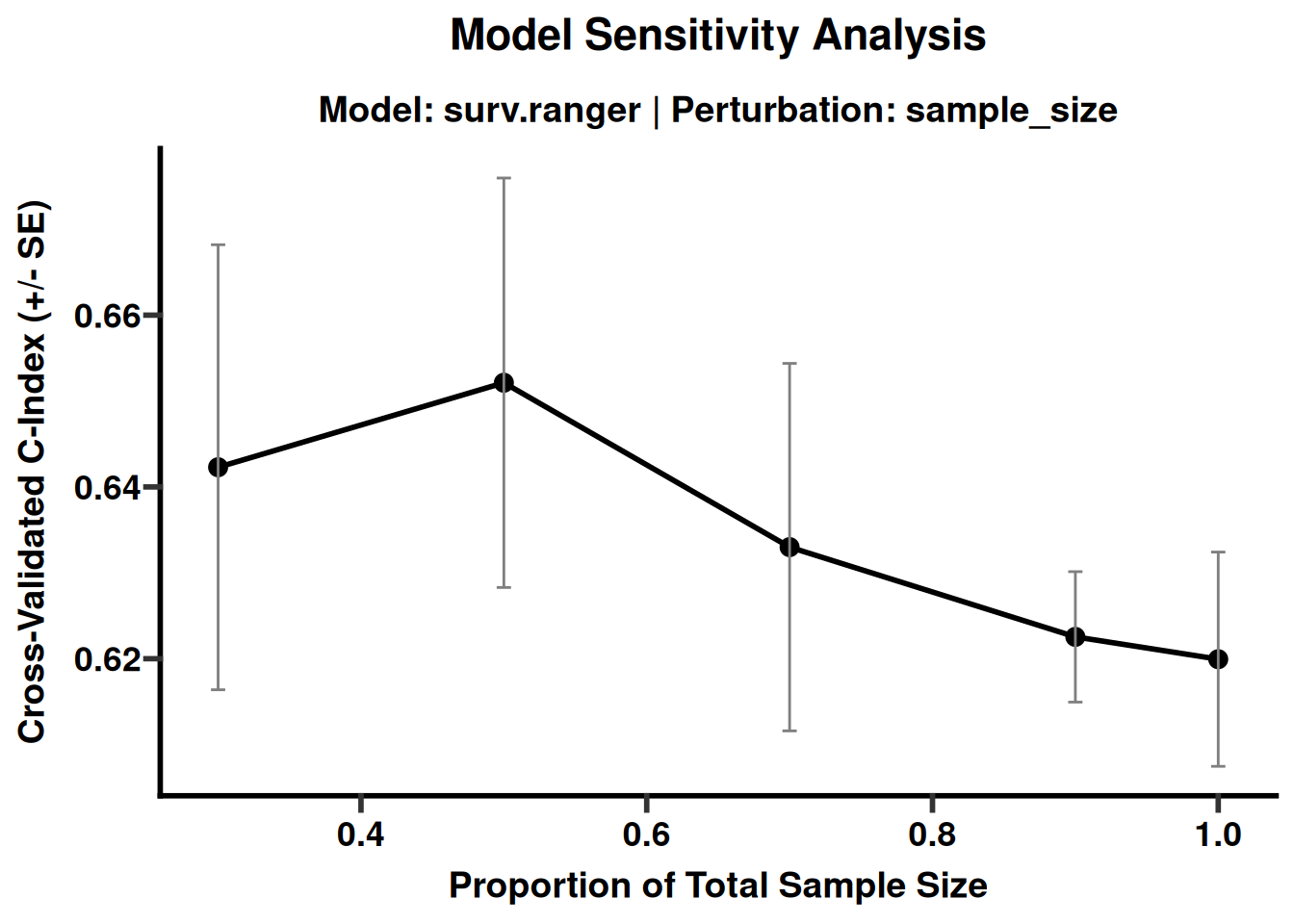

- Model sensitivity (sample size and censoring rate)
Decision curve analysis (DCA) and SHAP explanations (on validation set)
Ten advanced extensions (all executed sequentially)
Save final PrognosiX object and deploy
Final report

11.2.2 0 Environment and configuration

This section defines seeds, output paths, and dependencies. Update these paths and key parameters first when using new data.

Code

# 0. Environment and configuration
# ---------------------------------------------------------------------------
set.seed(2025)

# Version and output root
VERSION <- "Advanced_extensions"
OUTPUT_ROOT <- "./PrognosiX_Output"
OUTPUT_DIR <- file.path(OUTPUT_ROOT, VERSION)

# Load required packages
library(icare)
required_pkgs <- c("mlr3", "mlr3proba", "mlr3viz", "mlr3learners",
                   "survival", "survminer", "ggplot2", "caret", "dplyr",
                   "tidyr", "rms", "risksetROC", "survex", "dcurves",
                   "readxl", "patchwork", "ggrepel", "maxstat")
missing_pkgs <- required_pkgs[!sapply(required_pkgs, requireNamespace, quietly = TRUE)]
if (length(missing_pkgs)) install.packages(missing_pkgs)
invisible(lapply(required_pkgs, library, character.only = TRUE))

# Register OUTPUT_DIR with the package rather than defining a local sub_dir().
# icare already ships sub_dir(); a local definition shadows it only inside this
# script, so functions INSIDE the package that call sub_dir() themselves (e.g.
# plot_tdROC_comparison(), plot_multitime_calibration(), plot_clinical_impact())
# would still resolve it in the icare namespace and write to a session-temp
# directory. Calling set_output_root() points both at the same tree.
set_output_root(OUTPUT_DIR)

# Create version root and standard subfolders
sub_dir()
sub_dir("data")
sub_dir("01_feature_selection")
sub_dir("02_model")
sub_dir("03_evaluation")
sub_dir("04_robustness")
sub_dir("05_xai")

# Additional packages for extensions (checked inside each function)
ext_pkgs <- c("mlr3extralearners", "survcomp", "mlr3mbo", "bbotk", "MASS", "glmnet")
for (pkg in ext_pkgs) {
  if (!requireNamespace(pkg, quietly = TRUE)) {
    message("Note: Package '", pkg, "' not installed. Some advanced extensions may be skipped.")
  }
}

# ---------------------------------------------------------------------------

11.2.3 1 Data preparation (move time/status to info.data)

This section imports and organizes the data. Check dimensions and variable coding before continuing.

Code

# 1. Data preparation (move time/status to info.data)
# ---------------------------------------------------------------------------
raw_dis <- as.data.frame(read_excel("data/PMID37633276_DIA_plasmaproomic.xlsx", sheet = "Table S1B"))
raw_dis <- raw_dis[!grepl(x = raw_dis$`Case ID`, pattern = "^KC"), ]

# Extract numeric features (laboratory parameters)
mat <- raw_dis[, c("White blood cell count",
                   "Lymphocytes%", "Monocytes%", "Neutrophilic granulocyte%", "Eosinophil%",
                   "Basophil%", "Lymphocytes count", "Monocytes count", "Neutrophilic granulocyte count",
                   "Eosinophil count", "Basophil count", "Red blood cell count",
                   "Hemoglobin", "Hematocrit", "Mean red blood cell volume", "Mean cell hemoglobin",
                   "Mean corpuscular hemoglobin concentration", "Red blood cell distribution width CV",
                   "Red blood cell distribution width SD", "Platelet count", "Mean platelet volume",
                   "PCT", "Platelet volume distribution width")]

index <- grepl(x = raw_dis$`Case ID`, pattern = "^HC")

# Clinical metadata (including time, status, and subgroup variables)
inf <- raw_dis[, c("Case ID", "Sample type", "Plasma proteome ID", "Tissue proteome ID",
                   "Gender", "Age at diagnosis", "Tobacco smoking history", "Drinking history",
                   "Vital status", "Days to last followup", "Days until death",
                   "Combined days to last followup or death", "Progressive-free survival_Status",
                   "Progressive-free survival_Months", "Tumor location", "Tumor size (cm)",
                   "T-category", "Lymph node involvement", "Distant metastasis",
                   "TNM Stage", "Grade", "Morphology")]

# The group label lives in `inf` ONLY -- see the Module 1 chapter for why.
inf$group <- factor(ifelse(index, "Healthy Control", "Case"),
                    levels = c("Healthy Control", "Case"))
mat <- as.matrix(mat)
storage.mode(mat) <- "numeric"

rownames(mat) <- inf$`Case ID`
rownames(inf) <- inf$`Case ID`
mat <- as.data.frame(mat)
mat$age <- inf$`Age at diagnosis`
mat$sex <- inf$Gender

inf$time <- inf$`Combined days to last followup or death`
inf$event <- inf$`Vital status`
inf$event <- ifelse(inf$event == "Dead", 1, 0)

# Keep only disease samples (compare the label text, not a code -- the group
# column is a factor, so `== 1` would silently match nothing)
inf <- inf[inf$group == "Case", ]
mat <- mat[rownames(inf), ]
mat$time <- inf$time
mat$status <- inf$event

# Build Stat object with clean.data (features) and info.data (metadata including time/status)
stat_obj <- CreateStatObject(
  clean.data = mat,
  info.data = inf,
  group_col = "group",
  na.action = "allow"
)

Data prepared for clean.data
Data prepared for info.data
Final info.data prepared.
Stat object created.

Code

cat("Stat object created.\n")

Stat object created.

Code

# Convert to PrognosiX: time/status are moved to info.data automatically
prog <- Stat_to_PrognosiX(stat_obj, "time", "status",
                          na_action = "omit",
                          min_events = 10,
                          verbose = TRUE)

PrognosiX object created successfully.
  Features: 24 | Samples: 362
  Metadata columns: 27 (including time/status)

Code

# ---------------------------------------------------------------------------

11.2.4 2 Feature selection (ONLY on training set)

This section selects candidate features. Consider effect size, stability, and biological plausibility rather than a single significance measure.

Code

# 2. Feature selection (ONLY on training set)
# ---------------------------------------------------------------------------
task_full <- surv_extract_task(prog)
n <- task_full$nrow
train_idx <- caret::createDataPartition(task_full$data()[[task_full$target_names[2]]],
                                        p = 0.7, list = FALSE)
val_idx <- setdiff(seq_len(n), train_idx)

train_task <- task_full$clone()$filter(train_idx)
val_task <- task_full$clone()$filter(val_idx)

# Multi‑method feature selection: univariate Cox, LASSO, RF importance, Ridge, Elastic Net, VIMP
methods_to_run <- c("uni_cox", "lasso", "rf_imp", "ridge", "enet", "vimp")
feat_sel <- surv_feature_selection_multi(
  object = train_task,
  methods = methods_to_run,
  p_threshold = 0.1,
  top_ratio = 0.5,
  combine = "union",
  verbose = TRUE
)


[Multi-Feature Selection] Methods: uni_cox, lasso, rf_imp, ridge, enet, vimp

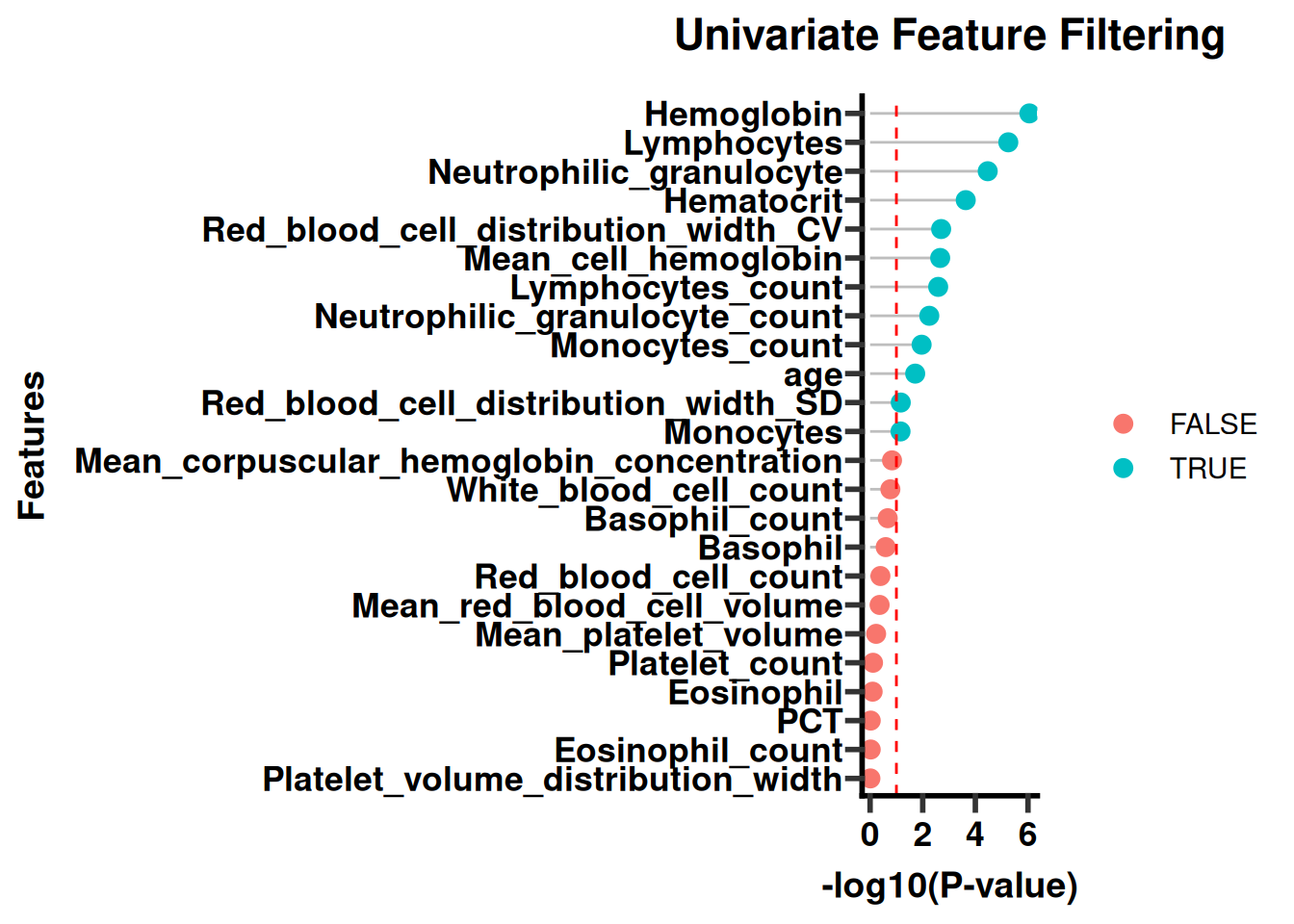

  - Running univariate Cox (p < 0.1 )...

  - Running glmnet family (LASSO, Ridge, Elastic Net)...
  - Running Random Forest (ranger) importance...
  - Running VIMP variable importance...

[Combined] UNION selection: 17 features out of 24

Code

selected_feats <- feat_sel$selected
cat("Selected features:", paste(selected_feats, collapse = ", "), "\n")

Selected features: Hematocrit, Hemoglobin, Lymphocytes, Lymphocytes_count, Mean_cell_hemoglobin, Monocytes, Monocytes_count, Neutrophilic_granulocyte, Neutrophilic_granulocyte_count, Red_blood_cell_distribution_width_CV, Red_blood_cell_distribution_width_SD, age, Red_blood_cell_count, Basophil, Platelet_count, Mean_corpuscular_hemoglobin_concentration, Basophil_count

Code

write.csv(feat_sel$method_table,
          file = file.path(sub_dir("01_feature_selection"), "feature_selection_methods.csv"),
          row.names = FALSE)

train_task <- train_task$select(selected_feats)
val_task <- val_task$select(selected_feats)

# Save train/validation data for reproducibility
train_data <- as.data.frame(train_task$data())
val_data <- as.data.frame(val_task$data())
write.csv(train_data, file = file.path(sub_dir("data"), "training_data.csv"), row.names = FALSE)
write.csv(val_data,   file = file.path(sub_dir("data"), "validation_data.csv"), row.names = FALSE)

# ---------------------------------------------------------------------------

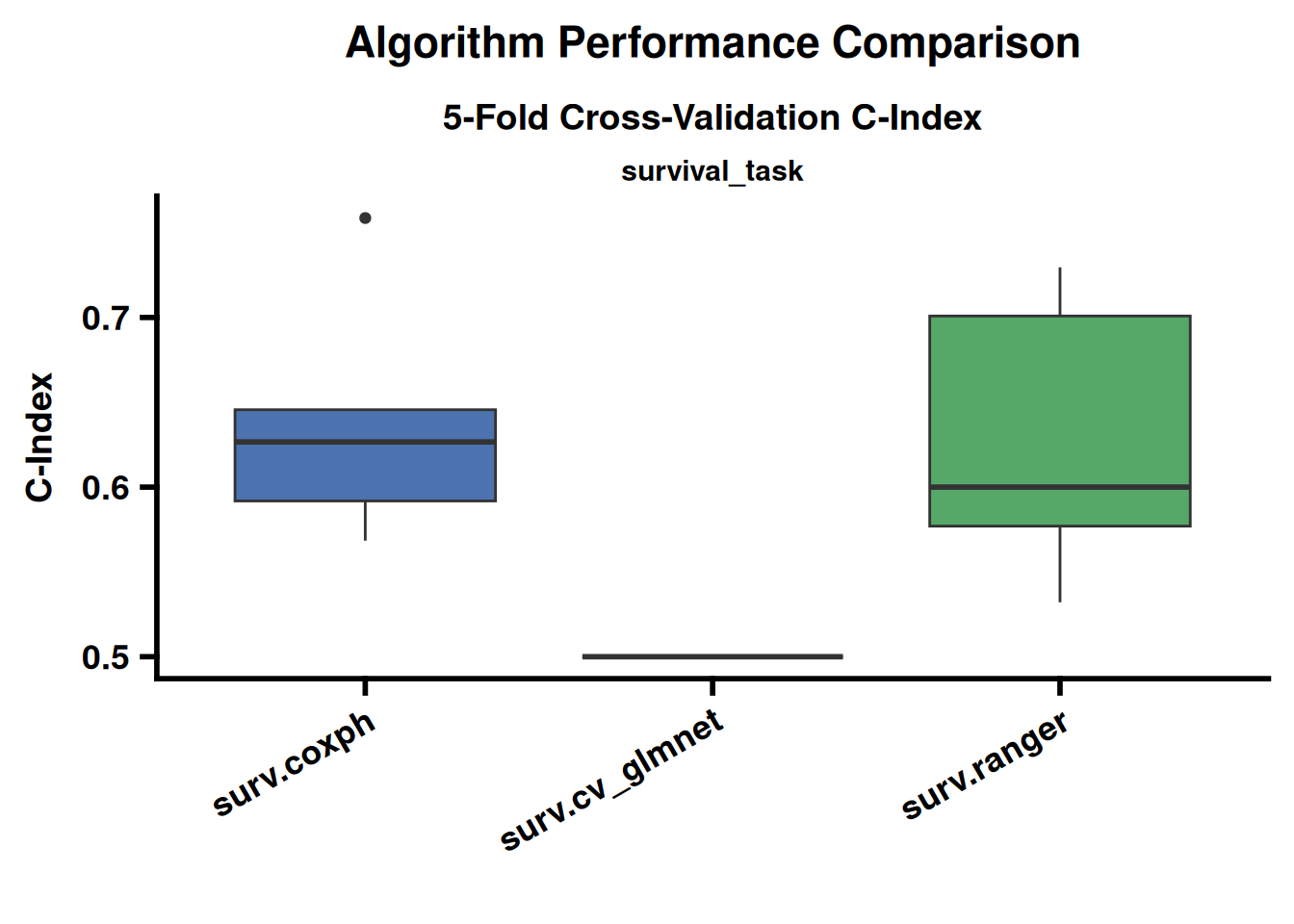

11.2.5 3 Algorithm benchmarking and hyperparameter tuning

This section trains and compares candidate models. Select models using discrimination, calibration, stability, and clinical utility together.

Code

# 3. Algorithm benchmarking and hyperparameter tuning
# ---------------------------------------------------------------------------
# Compare Cox, LASSO, and Random Survival Forest (Ranger)
learners_list <- list(
  surv_get_learner("surv.coxph",     train_task),
  surv_get_learner("surv.cv_glmnet", train_task),
  surv_get_learner("surv.ranger",    train_task)
)
bmr1 <- surv_run_algorithm_benchmark(train_task, learners_list)
bmr2 <- surv_benchmark_learners(train_task, learner_ids = c("surv.coxph", "surv.ranger"), tune = FALSE)
bmr2_summary <- surv_summarize_benchmark(bmr2)
write.csv(bmr2_summary, file = file.path(sub_dir("02_model"), "algorithm_benchmark.csv"), row.names = FALSE)

# Select the best model (here Ranger) and perform hyperparameter tuning
best_id <- "surv.ranger"
tune <- surv_train_and_tune(train_task, best_id, tuning_budget = 25)
best_lrn <- tune$learner
cv_cindex <- tune$cv_performance
cat("CV C-index after tuning:", round(cv_cindex, 4), "\n")

CV C-index after tuning: 0.6619

Code

# Train a Cox model for comparison (used in extensions)
cox_lrn <- surv_get_learner("surv.coxph", train_task)$train(train_task)

# ---------------------------------------------------------------------------

11.2.6 4 Core model evaluation

This section trains and compares candidate models. Select models using discrimination, calibration, stability, and clinical utility together.

Code

# 4. Core model evaluation
# ---------------------------------------------------------------------------
# Warning: if no independent validation data is provided, some metrics are apparent
if (is.null(val_data)) {
  msg <- paste(
    "\n",
    "==================== WARNING ====================\n",
    "No external validation data (`val_data`) provided.\n",

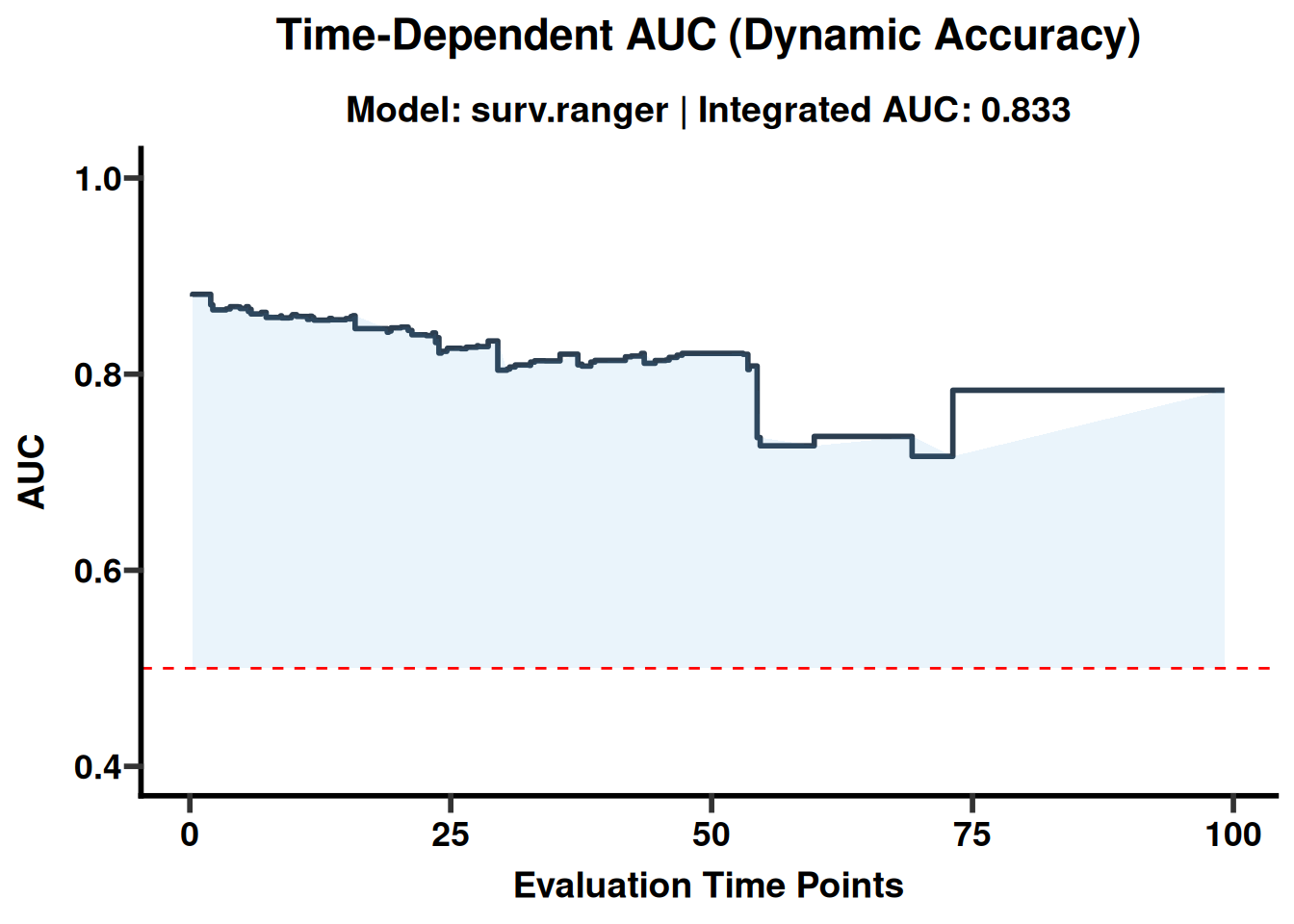

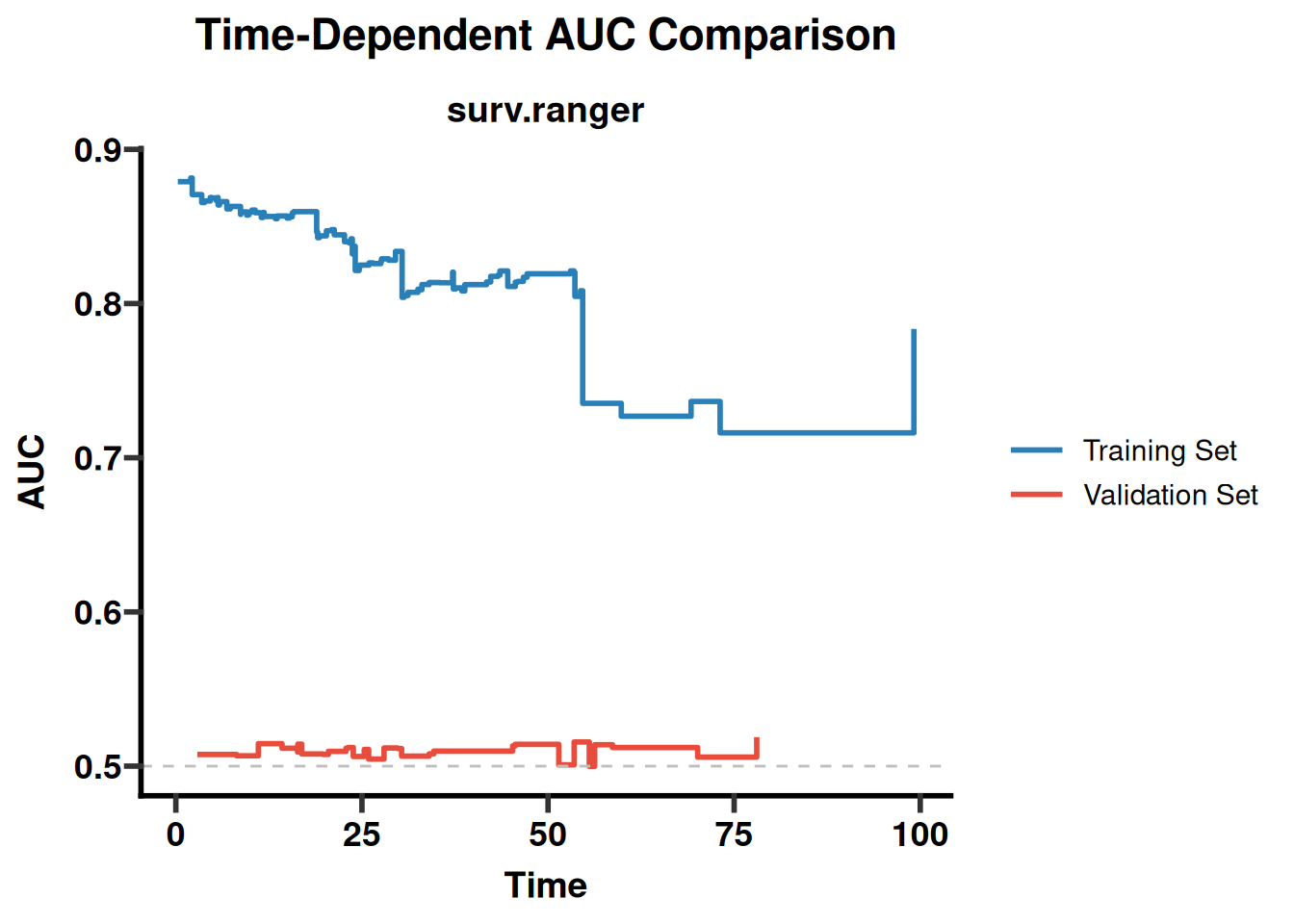

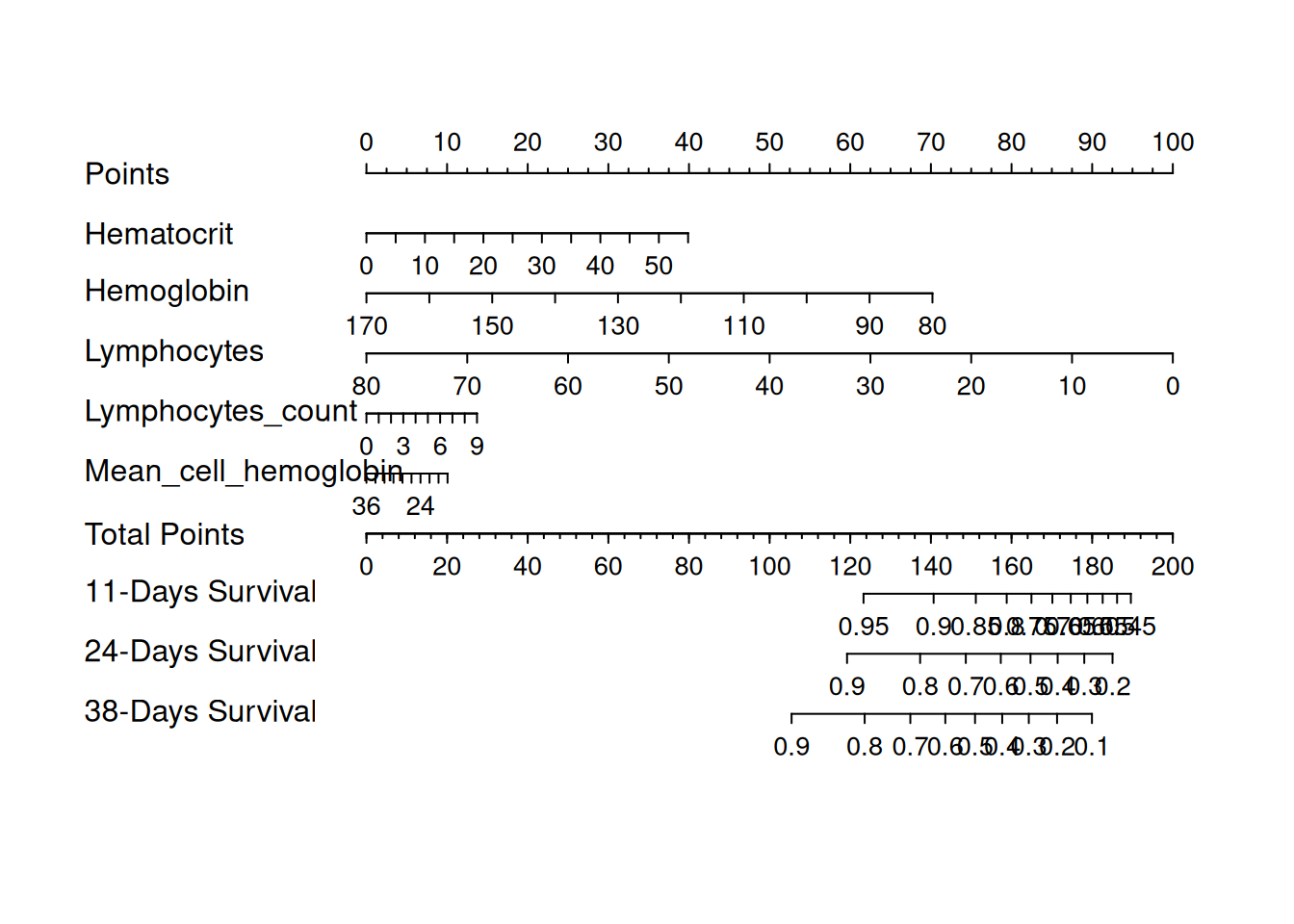

    "KM curves, time‑dependent AUC, and nomogram will be\n",
    "computed on the TRAINING SET – these are apparent\n",
    "(optimistic) estimates. Do not report as generalizable.\n",
    "==================================================\n"
  )
  warning(msg, call. = FALSE, immediate. = TRUE)
  message(msg)
}

# Training set (apparent) performance
best_lrn$predict_type <- "distr"
train_perf <- surv_evaluate_model(best_lrn, train_task,
                                  measures = list(msr("surv.cindex"), msr("surv.graf")))
cat("Training apparent C-index:", round(train_perf$surv.cindex, 4), "\n")

Training apparent C-index: 0.8791

Code

# Validation set (unbiased) performance
val_pred <- best_lrn$predict(val_task)
val_cindex <- val_pred$score(msr("surv.cindex"))
cat("Validation C-index:", round(val_cindex, 4), "\n")

Validation C-index: 0.5

Code

# Save performance metrics
perf_df <- data.frame(
  Dataset = c("Training", "Validation"),
  C_index = c(train_perf$surv.cindex, val_cindex)
)
write.csv(perf_df, file = file.path(sub_dir("03_evaluation"), "performance.csv"), row.names = FALSE)

# ---- 4.1 Risk stratification KM curves (multiple cutoff methods) ----
pred_train <- best_lrn$predict(train_task)
cut_df <- as.data.frame(train_task$data())
cut_df$risk <- pred_train$crank

# Compute optimal cutoff using surv_cutpoint; fallback to median if fails
cut_res <- tryCatch({
  surv_cutpoint(cut_df, time = "time", event = "status", variables = "risk")
}, error = function(e) {
  warning("surv_cutpoint failed: ", e$message, ". Using median split.")
  list(cutpoint = data.frame(cutpoint = median(cut_df$risk, na.rm = TRUE)))
})
opt_cutoff <- cut_res$cutpoint$cutpoint
cat("Optimal cutoff (from surv_cutpoint):", round(opt_cutoff, 4), "\n")

Optimal cutoff (from surv_cutpoint): 22.4282

Code

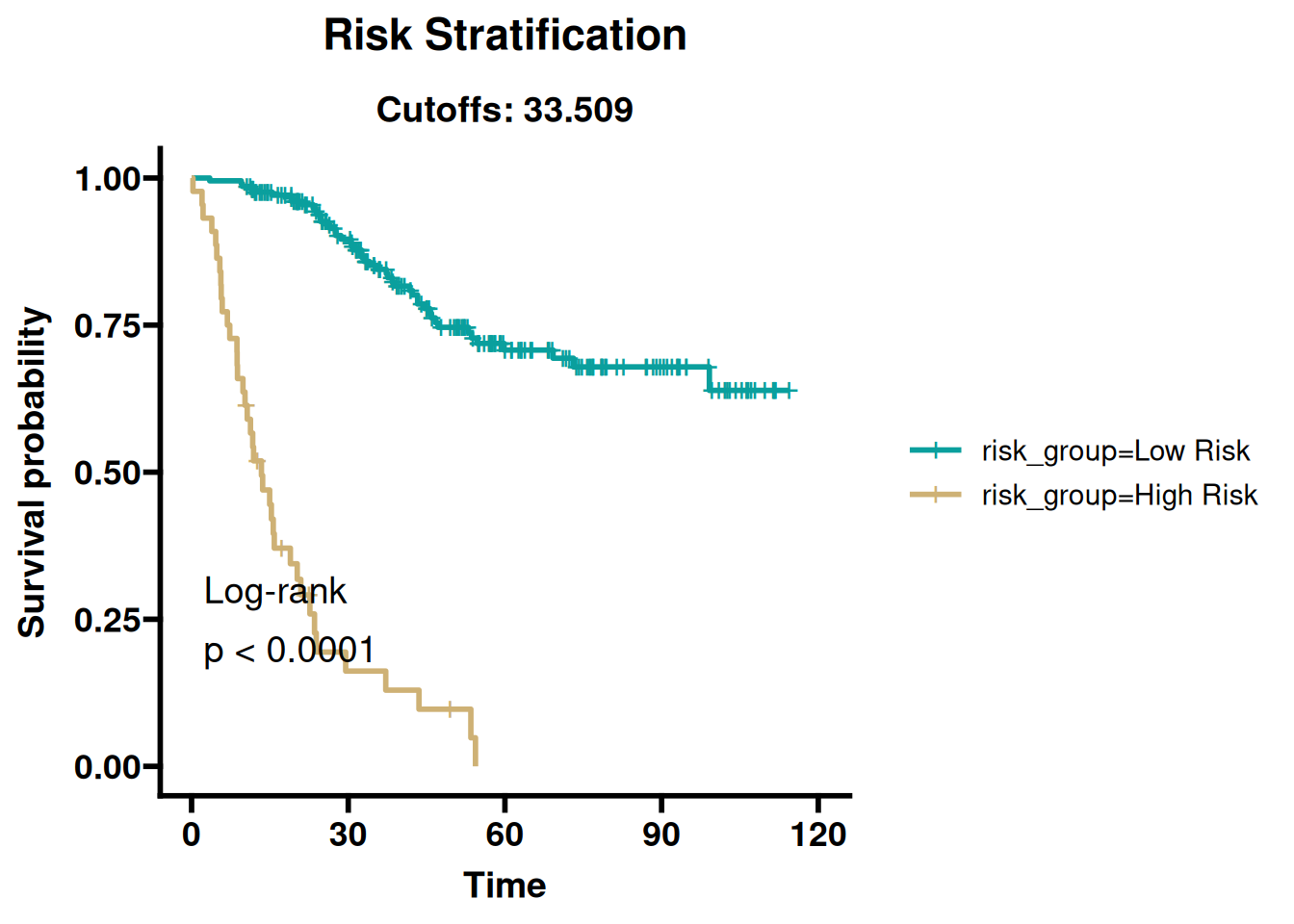

# Generate KM plots for four cutoff methods
# p_optimize and maxstat are exploratory; their p-values should not be used as confirmatory

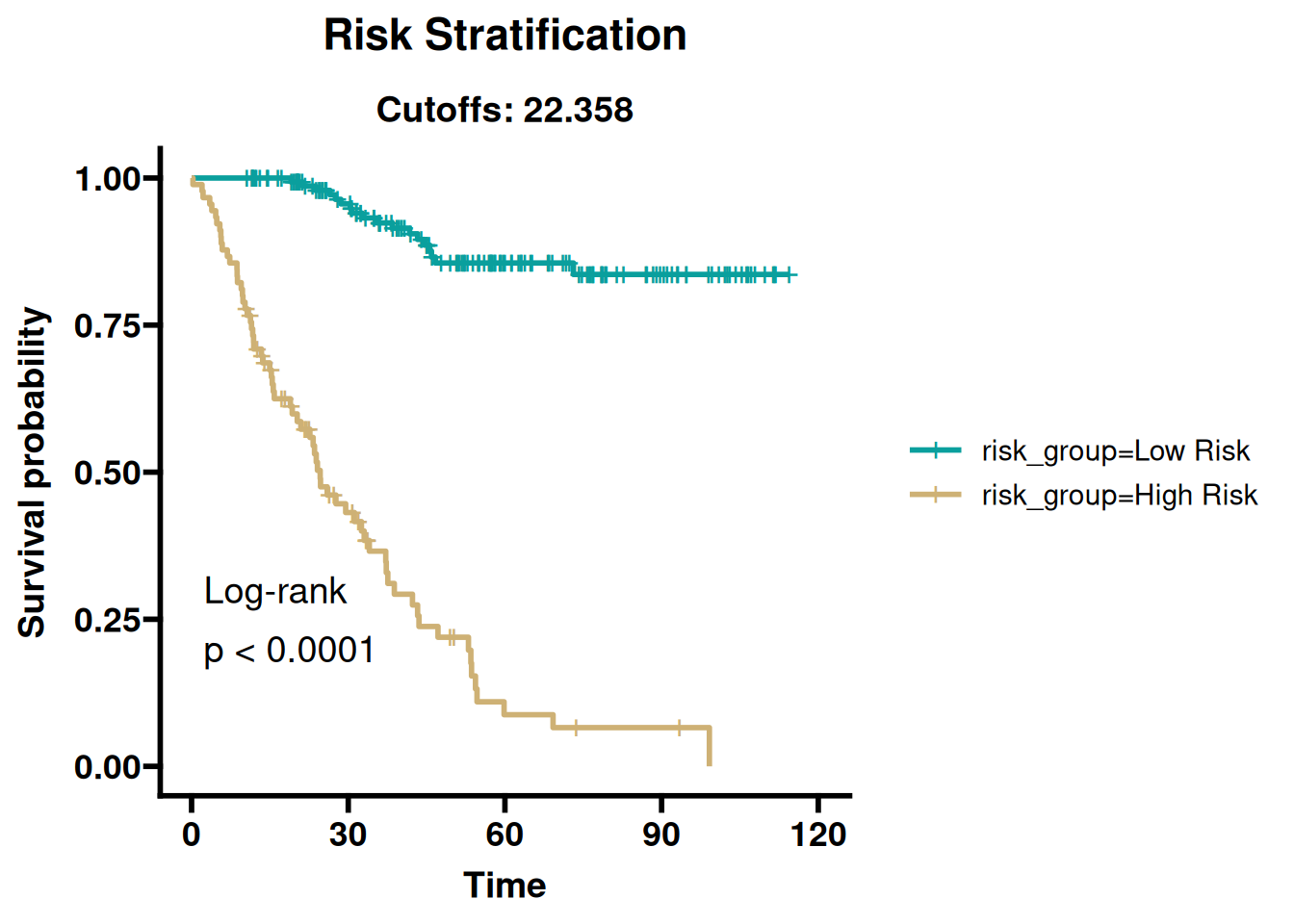

km_median    <- surv_plot_risk_km(best_lrn, train_task, "median", risk_table = TRUE)

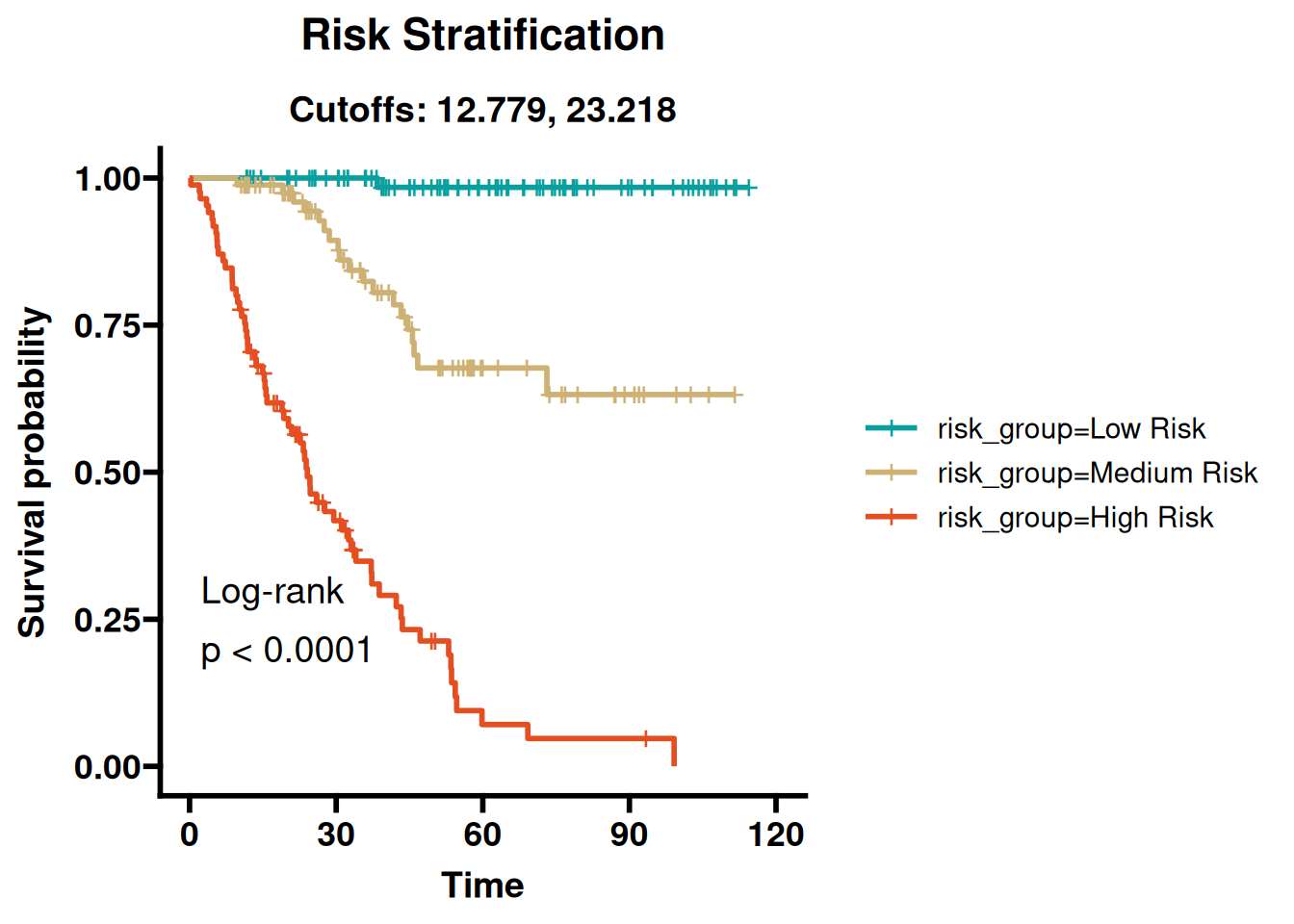

km_tertile   <- surv_plot_risk_km(best_lrn, train_task, "tertile")

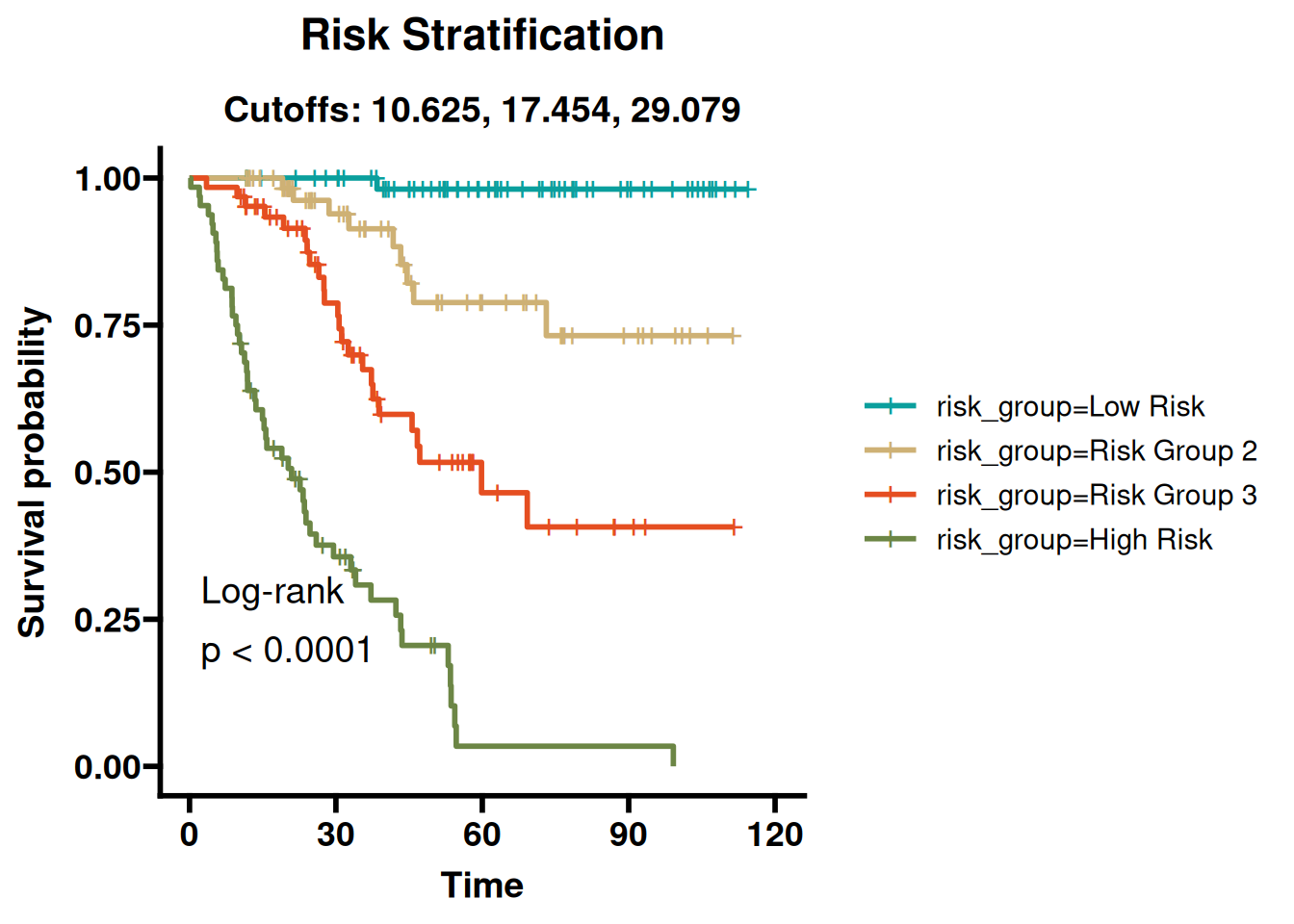

km_quartile  <- surv_plot_risk_km(best_lrn, train_task, "quartile")
km_p_optimize <- surv_plot_risk_km(best_lrn, train_task, "p_optimize",
                                   n_boot = 100, fraction = 0.7)
km_maxstat   <- surv_plot_risk_km(best_lrn, train_task, "maxstat",
                                  n_boot = 100, minprop = 0.3)

# Save training KM plots

print(km_median)
print(km_tertile)
print(km_quartile)
print(km_p_optimize)
print(km_maxstat)

# Apply the training median cutoff to the validation set (fixed threshold)
train_cutoff <- get_cf(km_median)
if (is.null(train_cutoff)) train_cutoff <- opt_cutoff
km_val_fixed <- surv_plot_risk_km(best_lrn, val_task,
                                  cutoff_method = "custom",
                                  custom_cutoffs = train_cutoff,
                                  risk_table = TRUE)
print(km_val_fixed)

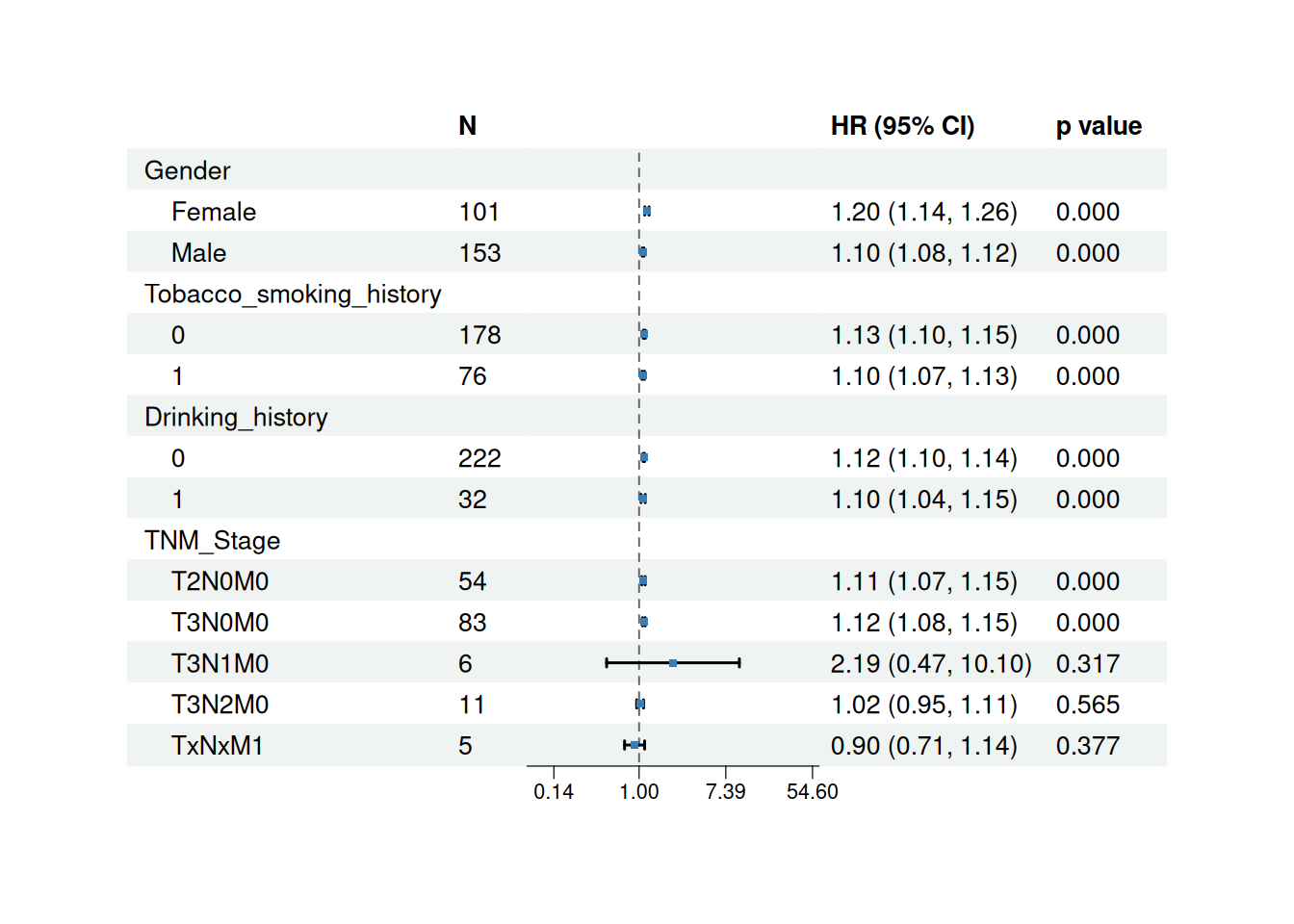

# ---- 4.2 Subgroup forest plot (using training set) ----
# Subset prog to training samples to ensure row consistency
train_prog <- prog
train_prog@clean.data <- prog@clean.data[train_idx, , drop = FALSE]
train_prog@info.data <- prog@info.data[train_idx, , drop = FALSE]
train_prog@survival.data <- prog@survival.data[train_idx, , drop = FALSE]

clinical_cols <- colnames(train_prog@info.data)
# info.data names are normalised by CreateStatObject(): spaces and dots become
# underscores. Passing the dotted spelling would make intersect() drop
# everything except "Gender" and silently shrink the subgroup forest.
candidate_vars <- c("Gender", "Tobacco_smoking_history", "Drinking_history", "TNM_Stage")
subgroup_vars <- intersect(candidate_vars, clinical_cols)

forest <- surv_plot_subgroup_forest(
  learner = best_lrn,
  object = train_task,
  subgroup_vars = subgroup_vars,
  prog = train_prog,
  save_plot = TRUE,
  save_dir = sub_dir("03_evaluation"),
  file_name = "subgroup_forest.pdf"
)
print(forest)

$plot


$data
                     Label   N       HR     Lower     Upper            P
1                   Gender  NA       NA        NA        NA           NA
2                   Female 101 1.196770 1.1394522  1.256970 7.313916e-13
3                     Male 153 1.097912 1.0769747  1.119257 1.934766e-21
4  Tobacco_smoking_history  NA       NA        NA        NA           NA
5                        0 178 1.127559 1.1028967  1.152773 1.941129e-26
6                        1  76 1.099281 1.0687141  1.130721 4.741393e-11
7         Drinking_history  NA       NA        NA        NA           NA
8                        0 222 1.116181 1.0965843  1.136127 4.935843e-34
9                        1  32 1.096843 1.0441842  1.152158 2.311103e-04
10               TNM_Stage  NA       NA        NA        NA           NA
11                  T2N0M0  54 1.107238 1.0659896  1.150082 1.448284e-07
12                  T3N0M0  83 1.116426 1.0827190  1.151183 1.909931e-12
13                  T3N1M0   6 2.185277 0.4728211 10.099874 3.168661e-01
14                  T3N2M0  11 1.023321 0.9460484  1.106906 5.649632e-01
15                  TxNxM1   5 0.901045 0.7149484  1.135581 3.773508e-01
    RowType            disp_hr disp_p disp_n
1    header
2  subgroup  1.20 (1.14, 1.26)  0.000    101
3  subgroup  1.10 (1.08, 1.12)  0.000    153
4    header
5  subgroup  1.13 (1.10, 1.15)  0.000    178
6  subgroup  1.10 (1.07, 1.13)  0.000     76
7    header
8  subgroup  1.12 (1.10, 1.14)  0.000    222
9  subgroup  1.10 (1.04, 1.15)  0.000     32
10   header
11 subgroup  1.11 (1.07, 1.15)  0.000     54
12 subgroup  1.12 (1.08, 1.15)  0.000     83
13 subgroup 2.19 (0.47, 10.10)  0.317      6
14 subgroup  1.02 (0.95, 1.11)  0.565     11
15 subgroup  0.90 (0.71, 1.14)  0.377      5

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

$fits
$fits$Gender_Male
Call:
survival::coxph(formula = survival::Surv(subset_data[[time_col]],
    subset_data[[status_col]]) ~ risk_score, data = subset_data)

               coef exp(coef) se(coef)     z      p
risk_score 0.093410  1.097912 0.009824 9.508 <2e-16

Likelihood ratio test=87.01  on 1 df, p=< 2.2e-16
n= 153, number of events= 51

$fits$Gender_Female
Call:
survival::coxph(formula = survival::Surv(subset_data[[time_col]],
    subset_data[[status_col]]) ~ risk_score, data = subset_data)

              coef exp(coef) se(coef)     z        p
risk_score 0.17963   1.19677  0.02504 7.173 7.31e-13

Likelihood ratio test=85.28  on 1 df, p=< 2.2e-16
n= 101, number of events= 34

$fits$Tobacco_smoking_history_1
Call:
survival::coxph(formula = survival::Surv(subset_data[[time_col]],
    subset_data[[status_col]]) ~ risk_score, data = subset_data)

              coef exp(coef) se(coef)     z        p
risk_score 0.09466   1.09928  0.01439 6.579 4.74e-11

Likelihood ratio test=41.53  on 1 df, p=1.16e-10
n= 76, number of events= 24

$fits$Tobacco_smoking_history_0
Call:
survival::coxph(formula = survival::Surv(subset_data[[time_col]],
    subset_data[[status_col]]) ~ risk_score, data = subset_data)

              coef exp(coef) se(coef)     z      p
risk_score 0.12006   1.12756  0.01128 10.64 <2e-16

Likelihood ratio test=122.5  on 1 df, p=< 2.2e-16
n= 178, number of events= 61

$fits$Drinking_history_1
Call:
survival::coxph(formula = survival::Surv(subset_data[[time_col]],
    subset_data[[status_col]]) ~ risk_score, data = subset_data)

              coef exp(coef) se(coef)     z        p
risk_score 0.09244   1.09684  0.02510 3.682 0.000231

Likelihood ratio test=13.2  on 1 df, p=0.0002799
n= 32, number of events= 10

$fits$Drinking_history_0
Call:
survival::coxph(formula = survival::Surv(subset_data[[time_col]],
    subset_data[[status_col]]) ~ risk_score, data = subset_data)

               coef exp(coef) se(coef)     z      p
risk_score 0.109913  1.116181 0.009037 12.16 <2e-16

Likelihood ratio test=148.8  on 1 df, p=< 2.2e-16
n= 222, number of events= 75

$fits$TNM_Stage_T3N2M0
Call:
survival::coxph(formula = survival::Surv(subset_data[[time_col]],
    subset_data[[status_col]]) ~ risk_score, data = subset_data)

              coef exp(coef) se(coef)     z     p
risk_score 0.02305   1.02332  0.04006 0.575 0.565

Likelihood ratio test=0.32  on 1 df, p=0.5701
n= 11, number of events= 7

$fits$TNM_Stage_T3N1M0
Call:
survival::coxph(formula = survival::Surv(subset_data[[time_col]],
    subset_data[[status_col]]) ~ risk_score, data = subset_data)

             coef exp(coef) se(coef)     z     p
risk_score 0.7817    2.1853   0.7810 1.001 0.317

Likelihood ratio test=8.37  on 1 df, p=0.003812
n= 6, number of events= 5

$fits$TNM_Stage_T3N0M0
Call:
survival::coxph(formula = survival::Surv(subset_data[[time_col]],
    subset_data[[status_col]]) ~ risk_score, data = subset_data)

              coef exp(coef) se(coef)     z        p
risk_score 0.11013   1.11643  0.01564 7.041 1.91e-12

Likelihood ratio test=52.77  on 1 df, p=3.742e-13
n= 83, number of events= 33

$fits$TNM_Stage_T2N0M0
Call:
survival::coxph(formula = survival::Surv(subset_data[[time_col]],
    subset_data[[status_col]]) ~ risk_score, data = subset_data)

              coef exp(coef) se(coef)     z        p
risk_score 0.10187   1.10724  0.01937 5.259 1.45e-07

Likelihood ratio test=30.65  on 1 df, p=3.095e-08
n= 54, number of events= 15

$fits$TNM_Stage_TxNxM1
Call:
survival::coxph(formula = survival::Surv(subset_data[[time_col]],
    subset_data[[status_col]]) ~ risk_score, data = subset_data)

              coef exp(coef) se(coef)      z     p
risk_score -0.1042    0.9010   0.1180 -0.883 0.377

Likelihood ratio test=0.78  on 1 df, p=0.3782
n= 5, number of events= 5


$xlim
[1]  0.07532262 63.39973251

$ticks_at
[1]  0.1353353  1.0000000  7.3890561 54.5981500

$ticks_digits
[1] 2

Code

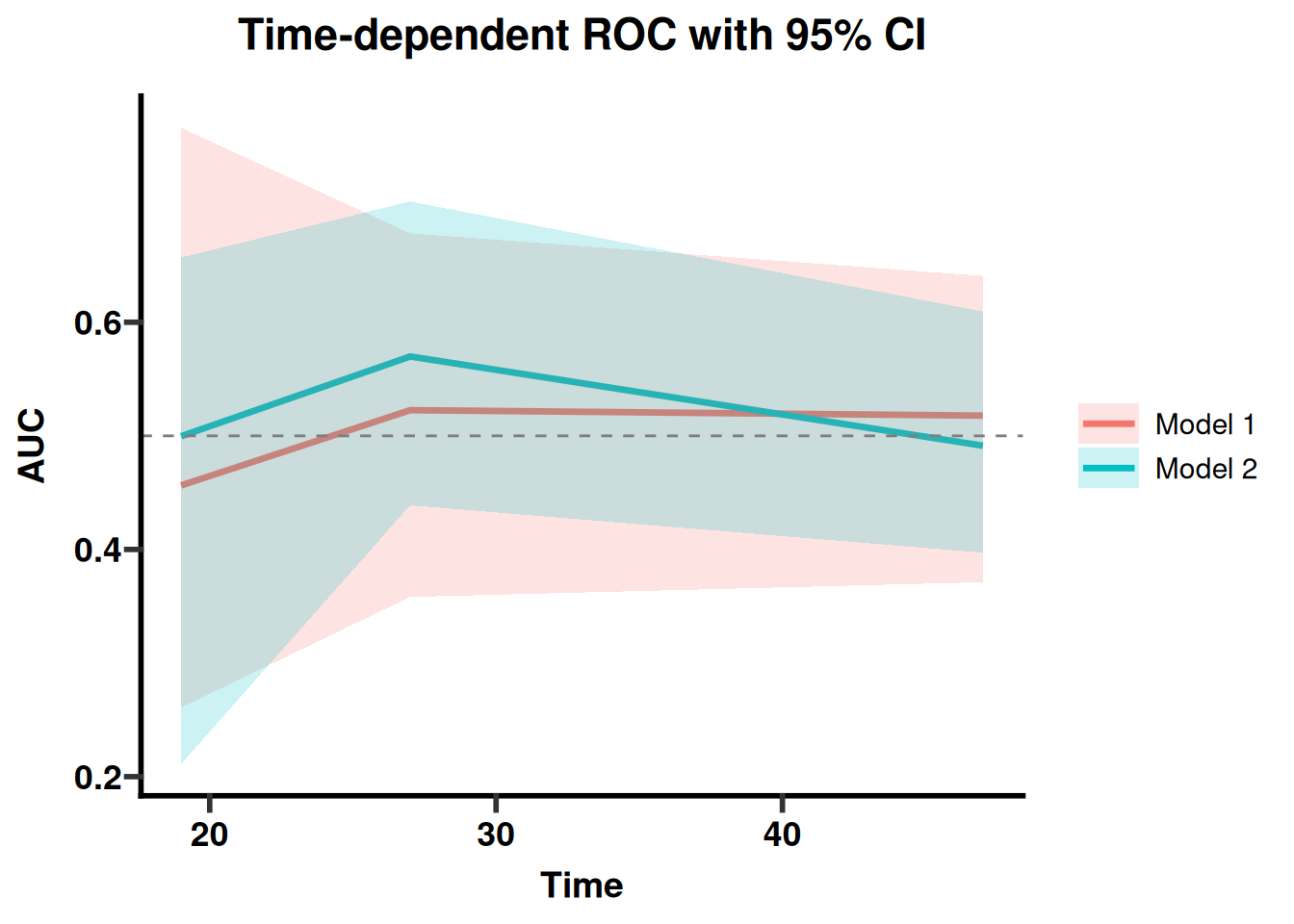

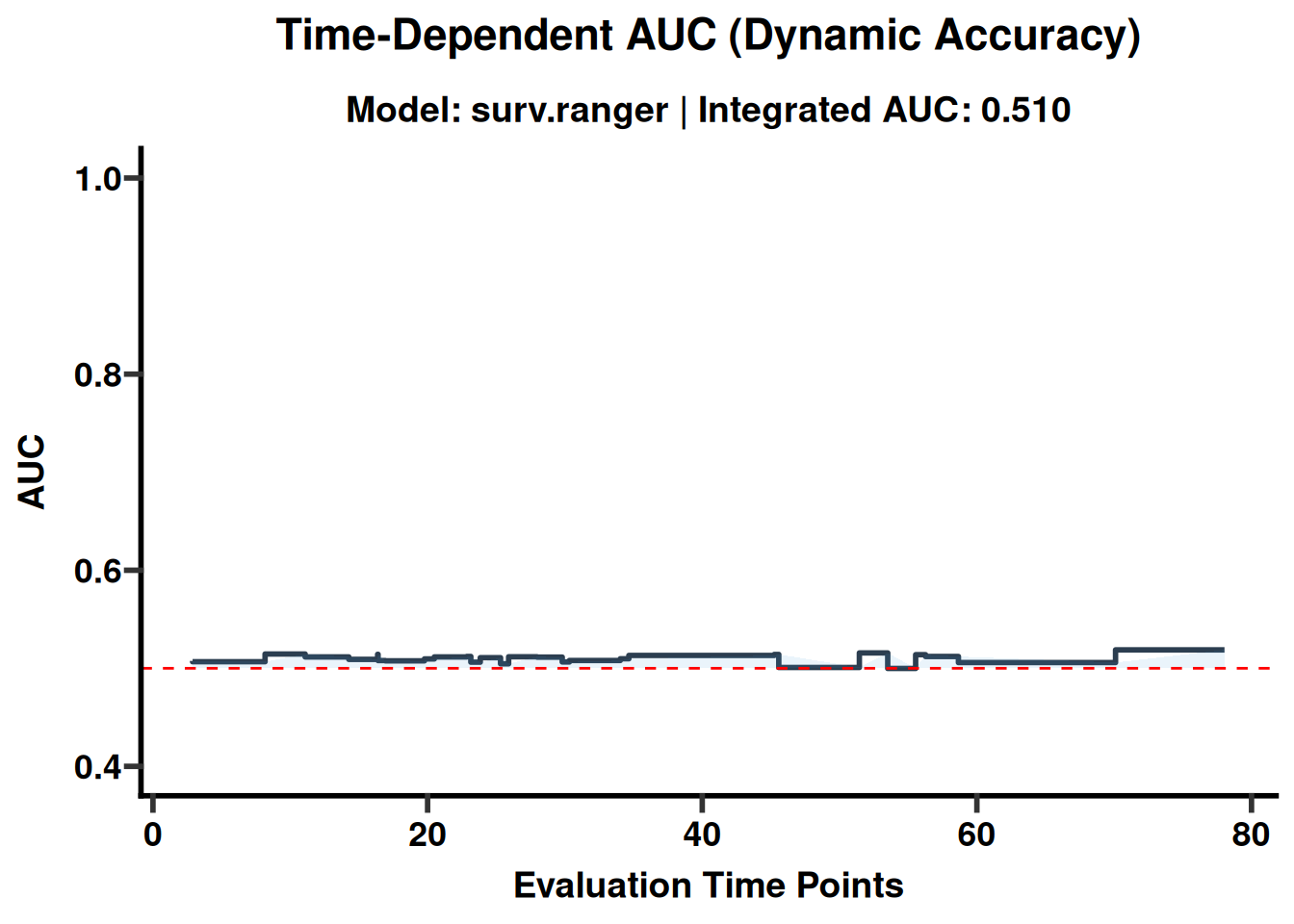

# ---- 4.3 Time‑dependent AUC (training vs validation) ----
auc_train <- surv_plot_time_dependent_auc(best_lrn, train_task)
auc_val   <- surv_plot_time_dependent_auc(best_lrn, val_task)
auc_cmp   <- surv_plot_comparison_auc(best_lrn, train_task, val_task)
ggsave(file.path(sub_dir("03_evaluation"), "AUC_comparison.pdf"), auc_cmp, width = 8, height = 5)

# ---- 4.4 Calibration curves (training vs validation) ----
cal_train <- surv_plot_calibration(best_lrn, train_task, time_point = 200)


========== Calibration Metrics at t = 200 ==========
** APPARENT (training-set) calibration -- interpret with caution **
Calibration slope    (ideal 1): 2.1034
Calibration intercept (ideal 0): -0.6006
R-squared:                       0.9148
Mean Absolute Error (MAE):       0.2256
Integrated Calibration Index:    0.1723
E50 (median abs error):          0.2450
E90 (90th pct abs error):        0.2857
====================================================

Code

cal_cmp   <- surv_plot_comparison_calibration(best_lrn, train_task, val_task, time_point = 200)


========== Calibration Metrics at t = 200 ==========
** TRAINING (apparent -- optimistic for flexible learners): **
  Slope=2.1034 | Intercept=-0.6006 | R2=0.9148 | MAE=0.2256 | ICI=0.1723
** VALIDATION (unbiased estimate): **
  Slope=0.0372 | Intercept=0.6140 | R2=0.0018 | MAE=0.1911 | ICI=0.1478
  Note: Training calibration is always expected to be more optimistic.
=================================================================

Code

ggsave(file.path(sub_dir("03_evaluation"), "Calibration_train.pdf"), cal_train, width = 8, height = 6)
ggsave(file.path(sub_dir("03_evaluation"), "Calibration_comparison.pdf"), cal_cmp, width = 8, height = 6)

# ---- 4.5 External validation (using the validation set) ----
val_data_ext <- as.data.frame(task_full$data())[val_idx, selected_feats, drop = FALSE]
val_data_ext$time <- task_full$data()[[task_full$target_names[1]]][val_idx]
val_data_ext$status <- task_full$data()[[task_full$target_names[2]]][val_idx]
val_res <- surv_predict_on_validation(best_lrn, val_data_ext, train_task)
val_cindex_alt <- val_res$prediction$score(msr("surv.cindex"))
cat("Validation C-index (alt):", round(val_cindex_alt, 4), "\n")

Validation C-index (alt): 0.5

Code

# ---- 4.6 Nomogram (with proportional hazards test) ----
nom <- surv_generate_nomogram(train_task,
                              selected_features = head(selected_feats, 5),
                              time_points = c(90, 180, 365),
                              time_unit = "days")


========== Proportional Hazards Assumption Test ==========
                      chisq df     p
Hematocrit           0.5235  1 0.469
Hemoglobin           0.0765  1 0.782
Lymphocytes          1.5817  1 0.209
Lymphocytes_count    2.9681  1 0.085
Mean_cell_hemoglobin 0.0819  1 0.775
GLOBAL               5.3030  5 0.380
  If any p-value < 0.05, the PH assumption may be violated.
  Consider including time-dependent covariates or stratification.
===========================================================

Code

# The nomogram plot is drawn; PH test results are printed to console.

# ---------------------------------------------------------------------------

11.2.7 5 Robustness analysis

This section tests sensitivity to sampling, censoring, and feature changes. Robust conclusions should remain similar under reasonable perturbations. It is run in three parts: feature stability, feature ablation, and model sensitivity.

11.2.8 5.1 Feature stability (LASSO bootstrapping)

This section tests sensitivity to sampling, censoring, and feature changes. Robust conclusions should remain similar under reasonable perturbations.

Code

# 5.1 Feature stability (LASSO bootstrapping)
stab <- surv_analyze_feature_stability(train_task, "time", "status", n_repeat = 20, alpha = 1)
cat("Stability index:", round(stab$stability_index, 4), "\n")

Stability index: 0.6146

Code

ggsave(file.path(sub_dir("04_robustness"), "stability_plot.pdf"), stab$plot, width = 8, height = 6)
write.csv(stab$frequencies, file.path(sub_dir("04_robustness"), "stability_frequencies.csv"), row.names = FALSE)

11.2.9 5.2 Feature ablation (drop each feature and measure C-index drop)

This section tests sensitivity to sampling, censoring, and feature changes. Robust conclusions should remain similar under reasonable perturbations.

Code

# 5.2 Feature ablation (drop each feature and measure C-index drop)
abl <- surv_analyze_feature_ablation(train_task, best_id, selected_feats)
ggsave(file.path(sub_dir("04_robustness"), "ablation_plot.pdf"), abl$plot, width = 8, height = 6)
write.csv(abl$results, file.path(sub_dir("04_robustness"), "ablation_results.csv"), row.names = FALSE)

11.2.10 5.3 Model sensitivity (sample size and censoring rate)

This section trains and compares candidate models. Select models using discrimination, calibration, stability, and clinical utility together.

Code

# 5.3 Model sensitivity (sample size and censoring rate)
sens_sample <- surv_analyze_model_sensitivity(train_task, best_id, analysis_type = "sample_size")
sens_censor <- surv_analyze_model_sensitivity(train_task, best_id, analysis_type = "censoring")
ggsave(file.path(sub_dir("04_robustness"), "sensitivity_sample.pdf"), sens_sample$plot, width = 8, height = 5)
ggsave(file.path(sub_dir("04_robustness"), "sensitivity_censor.pdf"), sens_censor$plot, width = 8, height = 5)
write.csv(sens_sample$results, file.path(sub_dir("04_robustness"), "sensitivity_sample.csv"), row.names = FALSE)
write.csv(sens_censor$results, file.path(sub_dir("04_robustness"), "sensitivity_censor.csv"), row.names = FALSE)

# ---------------------------------------------------------------------------

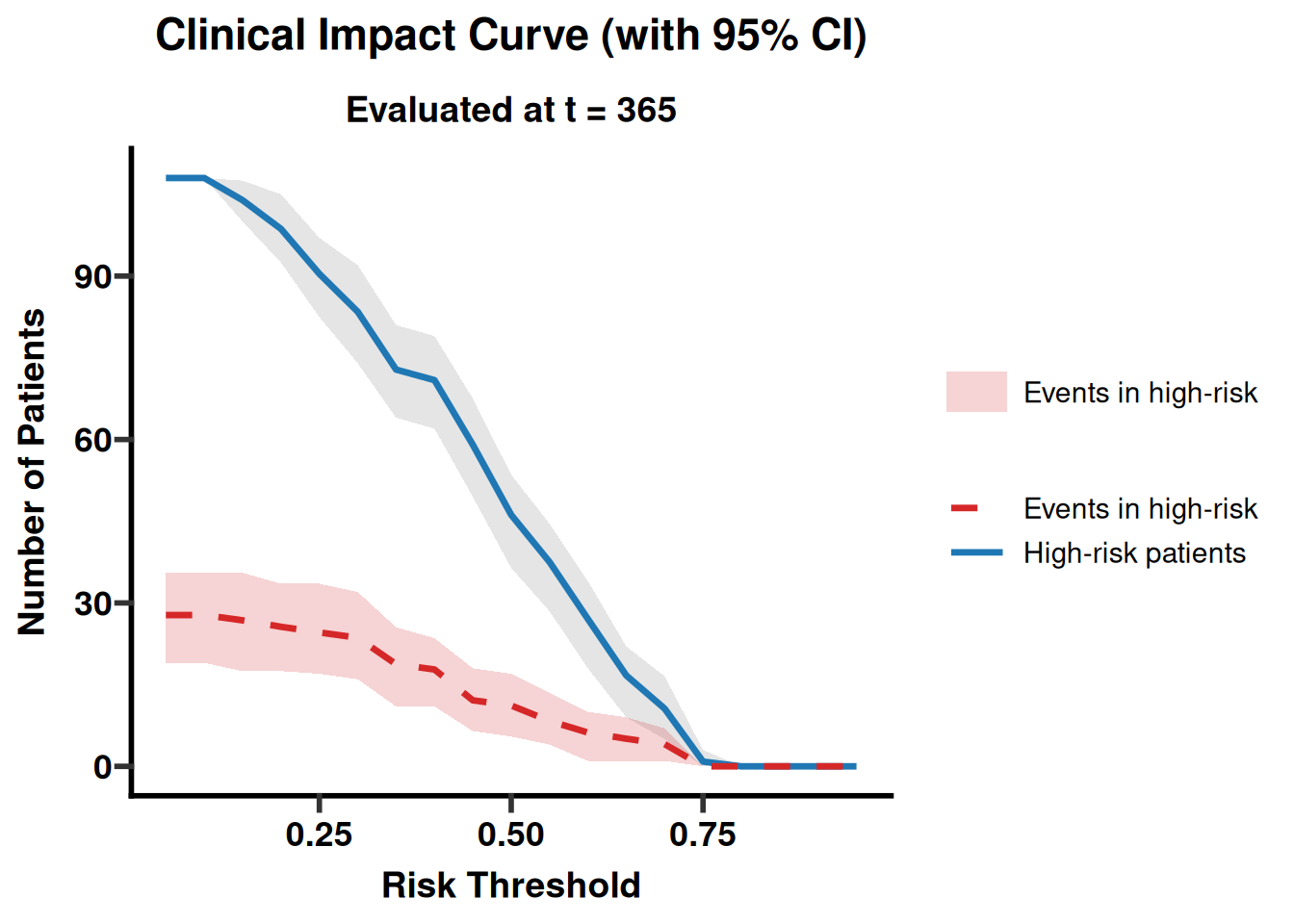

11.2.11 6 Decision curve analysis (DCA) and SHAP explanations (on validation set)

This section examines clinical utility and model explanations. Explanatory plots describe model behavior and do not establish causality.

Code

# 6. Decision curve analysis (DCA) and SHAP explanations (on validation set)
# ---------------------------------------------------------------------------
# Determine a valid evaluation time from validation event times
val_time <- val_task$data()[[val_task$target_names[1]]]
val_status <- val_task$data()[[val_task$target_names[2]]]
event_times <- val_time[val_status == 1]
if (length(event_times) == 0) stop("No events in validation set.")
eval_time <- round(quantile(event_times, 0.5, na.rm = TRUE), 0)
if (eval_time < min(event_times)) eval_time <- min(event_times)
cat("Using eval_time =", eval_time, "for DCA\n")

Using eval_time = 27 for DCA

Code

# DCA
dca_res <- plot_dca_survival(
  learners = list("Tuned" = best_lrn),
  object = val_task,
  eval_time = eval_time,
  clin_range = c(0.05, 0.5),
  print_stats = TRUE
)


========== DCA Summary (Clinical Range: [0.05, 0.5]) ==========
  Calculated using standard Kaplan-Meier survival adjustments via 'dcurves'.
 Model ClinRange_Min ClinRange_Max Max_NetBenefit Threshold_at_Max
 Tuned          0.05           0.5         0.0904             0.05
 Avg_NetBenefit Avg_NetBenefit_Gain
        -0.0157              0.1572
========================================================================

Code

ggsave(file.path(sub_dir("05_xai"), "dca_plot.pdf"), dca_res$plot, width = 7, height = 5)
write.csv(dca_res$table, file.path(sub_dir("05_xai"), "dca_table.csv"), row.names = FALSE)

# Global SHAP (SurvSHAP(t))
shap_global <- surv_explain_shap(
  learner = best_lrn,
  task = val_task,
  type = "global",
  n_explain = 30,
  n_background = 10,
  n_timepoints = 10,
  n_top_features = 6,
  verbose = TRUE
)

[SurvSHAP] mode=global, n_explain=30, n_background=10
[SurvSHAP] Subsampling times: 29 -> 10 points (2.9x speedup)
[SurvSHAP] Computing GLOBAL SurvSHAP(t)...
[SurvSHAP] Complete. 30 observations x 17 features x 10 times.

Code

ggsave(file.path(sub_dir("05_xai"), "shap_global_bar.pdf"), shap_global$plots$bar_plot, width = 8, height = 6)
if (!is.null(shap_global$plots$line_plot)) {
  ggsave(file.path(sub_dir("05_xai"), "shap_global_line.pdf"), shap_global$plots$line_plot, width = 8, height = 6)
}
write.csv(shap_global$shap_long, file.path(sub_dir("05_xai"), "shap_values_global.csv"), row.names = FALSE)

# Beeswarm plot
beeswarm_plot <- surv_plot_shap_beeswarm(shap_global, top_n = 6, method = "beeswarm",
                                         title = "Global SurvSHAP (validation set)")
ggsave(file.path(sub_dir("05_xai"), "shap_beeswarm.pdf"), beeswarm_plot, width = 9, height = 6)

# =============================================================================

11.2.12 7 Ten advanced extensions (all executed sequentially)

This section performs the core analysis for this stage. Review the output immediately below the code and confirm that data ranges, assumptions, and results match the study design.

Code

# 7. Ten advanced extensions (all executed sequentially)
# =============================================================================
cat("\n========== Running 10 advanced extensions ==========\n")


========== Running 10 advanced extensions ==========

Code

# ---- 7.1 Competing risks (Fine‑Gray or cause‑specific Cox) ----
# Purpose: Correctly estimate cumulative incidence when competing events exist.
# Method: Fine‑Gray via mlr3extralearners or cause‑specific Cox.
cat("\n--- 7.1 Competing risks (Fine‑Gray / cause‑specific Cox) ---\n")


--- 7.1 Competing risks (Fine‑Gray / cause‑specific Cox) ---

Code

if (requireNamespace("mlr3extralearners", quietly = TRUE)) {
  fg_res <- tryCatch({
    run_competing_risks(prog, model_type = "finegray", cause = 1, tuning_budget = 20)
  }, error = function(e) {
    cat("Competing risks failed:", e$message, "\n")
    NULL
  })
  if (!is.null(fg_res)) {
    cat("Fine‑Gray CV C-index:", round(fg_res$cv_cindex, 4), "\n")
    saveRDS(fg_res, file.path(sub_dir("05_xai"), "competing_risks.rds"))
  }
} else {
  cat("Skipping (mlr3extralearners not installed).\n")
}

Fine‑Gray CV C-index: 0.5841

Code

# ---- 7.2 Time‑dependent ROC comparison (Ranger vs Cox) ----
# Purpose: Compare AUC trajectories and obtain bootstrap confidence intervals.
# Method: timeROC with bootstrapping.
cat("\n--- 7.2 Time‑dependent ROC comparison (Ranger vs Cox) ---\n")


--- 7.2 Time‑dependent ROC comparison (Ranger vs Cox) ---

Code

td_roc <- tryCatch({
  plot_tdROC_comparison(best_lrn, cox_lrn, val_task, n_boot = 50, save_plot = TRUE)
}, error = function(e) {
  cat("tdROC comparison failed:", e$message, "\n")
  NULL
})

# ---- 7.3 Multi‑time calibration curves ----
# Purpose: Assess calibration at multiple clinically relevant horizons.
# Method: Separate calibration plots at each time point, combined with patchwork.
cat("\n--- 7.3 Multi‑time calibration curves (90, 180, 365 days) ---\n")


--- 7.3 Multi‑time calibration curves (90, 180, 365 days) ---

Code

tryCatch({
  plot_multitime_calibration(best_lrn, val_task, time_points = c(90, 180, 365), save_plot = TRUE)
}, error = function(e) {
  cat("Multi‑time calibration failed:", e$message, "\n")
})

Multi‑time calibration failed: None of the specified time points have any events.

Code

# ---- 7.4 Repeated cross‑validation (with parallel support) ----
# Purpose: Obtain robust performance estimates with confidence intervals.
# Method: 5 repeats of 5‑fold CV, compute Bootstrap CI for C‑index.
cat("\n--- 7.4 Repeated cross‑validation (5×5‑fold CV) ---\n")


--- 7.4 Repeated cross‑validation (5×5‑fold CV) ---

Code

cv_res <- tryCatch({
  repeated_cv_evaluation(prog, "surv.ranger", n_repeats = 5, folds = 5, parallel = FALSE)
}, error = function(e) {
  cat("Repeated CV failed:", e$message, "\n")
  NULL
})
if (!is.null(cv_res)) {
  cat("Repeated CV summary:\n")
  print(cv_res$summary)
  write.csv(cv_res$results, file.path(sub_dir("04_robustness"), "repeated_cv_results.csv"), row.names = FALSE)
}

Repeated CV summary:
          Mean         SD  CI_lower  CI_upper  N
2.5% 0.5837289 0.05529898 0.4887204 0.6766139 25

Code

# ---- 7.5 DeLong test for comparing C‑indices ----
# Purpose: Statistically compare discriminative ability of Ranger vs Cox.
# Method: survcomp::cindex.comp (bootstrap‑based DeLong).
cat("\n--- 7.5 DeLong test (Ranger vs Cox) ---\n")


--- 7.5 DeLong test (Ranger vs Cox) ---

Code

delong <- tryCatch({
  compare_models_delong(best_lrn, cox_lrn, val_task, n_boot = 500)
}, error = function(e) {
  cat("DeLong test failed:", e$message, "\n")
  NULL
})
if (!is.null(delong)) {
  cat("DeLong p‑value:", delong$p.value, "\n")
  cat("C‑index Ranger:", round(delong$C_index_model1, 4), "\n")
  cat("C‑index Cox:    ", round(delong$C_index_model2, 4), "\n")
  write.csv(data.frame(
    Model1_Cindex = delong$C_index_model1,
    Model2_Cindex = delong$C_index_model2,
    Difference = delong$difference,
    P_value = delong$p.value,
    CI_lower = delong$ci_lower,
    CI_upper = delong$ci_upper
  ), file.path(sub_dir("05_xai"), "delong_test.csv"), row.names = FALSE)
}

DeLong p‑value: 0.952
C‑index Ranger: 0.5
C‑index Cox:     0.5035

Code

# ---- 7.6 Bayesian hyperparameter optimisation ----
# Purpose: More efficient search than random search, with automatic fallback.
# Method: mlr3mbo, falls back to random search on error.
cat("\n--- 7.6 Bayesian optimisation (Ranger) ---\n")


--- 7.6 Bayesian optimisation (Ranger) ---

Code

bayes_tune <- tryCatch({
  tune_with_bayes(train_task, "surv.ranger", tuning_budget = 30)
}, error = function(e) {
  cat("Bayesian optimisation failed:", e$message, "\n")
  NULL
})
if (!is.null(bayes_tune)) {
  saveRDS(bayes_tune, file.path(sub_dir("02_model"), "bayes_tune.rds"))
  cat("Bayesian tuned C‑index:", round(bayes_tune$cv_performance, 4), "\n")
}

Bayesian tuned C‑index: 0.6694

Code

# ---- 7.7 AIC stepwise variable selection ----
# Purpose: Complementary traditional feature selection using AIC.
# Method: MASS::stepAIC on a Cox model (bidirectional).
cat("\n--- 7.7 AIC stepwise selection (both directions) ---\n")


--- 7.7 AIC stepwise selection (both directions) ---

Code

step <- tryCatch({
  stepwise_variable_selection(prog, direction = "both")
}, error = function(e) {
  cat("Stepwise selection failed:", e$message, "\n")
  NULL
})
if (!is.null(step)) {
  cat("Stepwise selected features:", paste(step$selected_features, collapse = ", "), "\n")
  write.csv(data.frame(Features = step$selected_features),
            file.path(sub_dir("01_feature_selection"), "stepwise_features.csv"), row.names = FALSE)
}

Stepwise selected features: Basophil, Basophil_count, Eosinophil, Hemoglobin, Mean_cell_hemoglobin, Mean_corpuscular_hemoglobin_concentration, Mean_red_blood_cell_volume, Monocytes_count, Neutrophilic_granulocyte

Code

# ---- 7.8 Calibration‑in‑the‑large ----
# Purpose: Check overall calibration (mean predicted vs observed event rate).
# Method: Logistic regression of observed binary outcome on logit(predicted probability).
cat("\n--- 7.8 Calibration‑in‑the‑large (t = 365 days) ---\n")


--- 7.8 Calibration‑in‑the‑large (t = 365 days) ---

Code

cal_large <- tryCatch({
  calibration_in_the_large(best_lrn, val_task, time_point = 365)
}, error = function(e) {
  cat("Calibration‑in‑the‑large failed:", e$message, "\n")
  NULL
})
if (!is.null(cal_large)) {
  cat("Calibration intercept:", round(cal_large$intercept, 4), "\n")
  cat("Calibration slope:    ", round(cal_large$slope, 4), "\n")
  cat("Mean predicted:       ", round(cal_large$mean_predicted, 4), "\n")
  cat("Observed:             ", round(cal_large$observed, 4), "\n")
  write.csv(data.frame(
    Intercept = cal_large$intercept,
    Slope = cal_large$slope,
    Mean_Predicted = cal_large$mean_predicted,
    Observed = cal_large$observed,
    N_at_risk = cal_large$n_at_risk
  ), file.path(sub_dir("03_evaluation"), "calibration_large.csv"), row.names = FALSE)
}

Calibration intercept: -1.0549
Calibration slope:     -0.0261
Mean predicted:        0.4601
Observed:              0.3695

Code

# ---- 7.9 External validation (Hosmer‑Lemeshow test) ----
# Purpose: Assess calibration goodness‑of‑fit on validation set.
# Method: Group patients by predicted risk, compare observed vs expected events, χ² test.
cat("\n--- 7.9 Survival Hosmer‑Lemeshow test (t = 365 days, 10 groups) ---\n")


--- 7.9 Survival Hosmer‑Lemeshow test (t = 365 days, 10 groups) ---

Code

hl <- tryCatch({
  external_validation_test(best_lrn, val_task, time_point = 365, n_groups = 10)
}, error = function(e) {
  cat("HL test failed:", e$message, "\n")
  NULL
})

HL test failed: Too few patients for grouping.

Code

if (!is.null(hl)) {
  cat("HL chi‑square:", round(hl$chi_square, 4), "df:", hl$df, "p‑value:", round(hl$p_value, 4), "\n")
  write.csv(data.frame(
    Chi_square = hl$chi_square,
    df = hl$df,
    P_value = hl$p_value,
    N_total = hl$n_total
  ), file.path(sub_dir("03_evaluation"), "hl_test.csv"), row.names = FALSE)
}

# ---- 7.10 Clinical impact curve ----
# Purpose: Show number of high‑risk patients and events across thresholds.
# Method: Bootstrap confidence bands for both curves.
cat("\n--- 7.10 Clinical impact curve (t = 365 days) ---\n")


--- 7.10 Clinical impact curve (t = 365 days) ---

Code

tryCatch({
  plot_clinical_impact(best_lrn, val_task, time_point = 365, n_boot = 100, save_plot = TRUE)
}, error = function(e) {
  cat("Clinical impact curve failed:", e$message, "\n")
})

cat("\n========== All advanced extensions completed ==========\n")


========== All advanced extensions completed ==========

Code

# ---------------------------------------------------------------------------

11.2.13 8 Save final PrognosiX object and deploy

This section applies the trained object to new samples. Validate input format, performance, and target population in an independent cohort before deployment.

Code

# 8. Save final PrognosiX object and deploy
# ---------------------------------------------------------------------------
prog@best.model <- list(
  learner_id = best_id,
  learner = best_lrn,
  best_params = tune$best_params,
  cv_cindex = cv_cindex,
  features = selected_feats,
  cutoff = opt_cutoff,
  decision_type = "binary",
  train_cols = train_task$feature_names
)
prog@subgroup.risk <- list(
  benchmark_table = bmr1$table,
  stability = stab,
  ablation = abl,
  validation = list(cindex = val_cindex, n = val_task$nrow)
)
prog@split.data <- list(train_idx = train_idx, val_idx = val_idx)
saveRDS(prog, file = file.path(sub_dir("data"), "prog_obj_final.rds"))

# ---- 8.1 Predict risk for new patients ----
#new_patients <- data.frame(
#  Mean_corpuscular_hemoglobin_concentration = c(33, 34),
#  Basophil_count = c(0.02, 0.03),
#  Monocytes = c(0.6, 0.7),
#  Eosinophil_count=c(0.02, 0.03),
#  Basophil=c(0.6, 0.7),
#  Neutrophilic_granulocyte = c(4.2, 5.1),
#  Red_blood_cell_distribution_width_CV = c(12.3, 11.8),
#  Mean_red_blood_cell_volume = c(89, 92),
#  Lymphocytes_count = c(1.8, 2.1),
#  Platelet_volume_distribution_width = c(12.0, 13.1),
#  Lymphocytes = c(1.8, 2.1),
#  Monocytes_count = c(0.6, 0.7),
#  Neutrophilic_granulocyte_count = c(4.2, 5.1),
#  Mean_platelet_volume = c(10.5, 11.0),
#  row.names = c("patient_1", "patient_2")
#)

#risk_scores <- predict_prognosix(prog, new_patients, impute = TRUE)
#pred_groups_med <- predict_risk_groups(prog, new_patients, cutoff_method = "median")
#pred_groups_cus <- predict_risk_groups(prog, new_patients,
#                                       cutoff_method = "custom",
#                                       custom_cutoffs = opt_cutoff)
#cat("Risk scores:\n"); print(risk_scores)
#cat("Median groups:\n"); print(pred_groups_med)
#cat("Custom groups:\n"); print(pred_groups_cus)

# ---- 8.2 Deployment manager and Shiny app ----
manager <- New_Prog_Manager(prog)


-- PrognosiX Manager ---------------------------------
  Algorithm  : surv.ranger
  CV C-index : 0.6619
  Features   : 17  (Hematocrit, Hemoglobin, Lymphocytes, Lymphocytes_count, ...)
  Training N : 362 (events: 113)
------------------------------------------------------

Code

if (interactive()) {
  use_app_theme_grey()
  set_prog_app_text(
    title = "Survival Risk Predictor",
    citation_text = "Data: PMID37633276_DIA_plasmaproomic cohort."
  )
  set_prog_app_theme(
    primary_color = "#2c7fb8", background_color = "#f0f4f8", sidebar_color = "#e9ecef",
    box_background = "#ffffff", label_color = "#2c7fb8",
    run_button_gradient_start = "#2c7fb8", run_button_gradient_end = "#1d4e6e",
    risk_high_color = "#d9534f", risk_medium_color = "#f0ad4e", risk_low_color = "#5cb85c",
    table_header_color = "#2c7fb8", font_family = "Arial, sans-serif", font_size_base = 14
  )
  launch_prog_deploy_app(
    manager,
    var_dict = data.frame(
      Feature = selected_feats,
      Description = paste("Predictor", seq_along(selected_feats)),
      Units = rep("--", length(selected_feats))
    ),
    project_info = list(
      abstract = paste("Prognostic model trained on", train_task$nrow, "patients."),
      citation = "PMID37633276_DIA_plasmaproomic cohort."
    )
  )
}

# ---------------------------------------------------------------------------

11.2.14 9 Final report

This section saves model objects, tables, and figures for reproducibility, review, and reuse.

Code

# 9. Final report
# ---------------------------------------------------------------------------
cat("\n========================================\n")


========================================

Code

cat("Module 4 (advanced, leakage‑free) finished successfully!\n")

Module 4 (advanced, leakage‑free) finished successfully!

Code

cat("Best model:", best_id,
    "| CV C-index (training):", round(cv_cindex, 4),
    "| Validation C-index:", round(val_cindex, 4), "\n")

Best model: surv.ranger | CV C-index (training): 0.6619 | Validation C-index: 0.5

Code

cat("Optimal cutoff:", round(opt_cutoff, 4), "\n")

Optimal cutoff: 22.4282

Code

cat("All results saved under:", OUTPUT_DIR, "\n")

All results saved under: ./PrognosiX_Output/Advanced_extensions

Code

cat("========================================\n")

========================================
