12 Cell-Cell Communication and Microenvironment Interaction

This mainline moves from isolated cell states to tissue-level interaction logic. Once cell identities are established, many biological questions become relational: which populations signal to each other, which pathways dominate the exchange, and how does the microenvironment organize those interactions?

sclet treats communication analysis as a standardized downstream layer rather than a backend-specific side quest. This chapter shows how RunCCI() and related adapters fit into the broader state-aware workflow.

12.1 Input

The recommended entry point is RunCCI(). It requires a SingleCellExperiment object that includes cell clustering information. By default, it delegates to CellChat as the computational backend.

The group parameter should reference a variable within the SingleCellExperiment object that holds the clustering data.

RunCCI() follows the same layer contract as the rest of sclet. In most RNA workflows, layer = "logcounts" is the safest explicit choice. If you omit it, the function resolves from DefaultLayer(sce) and avoids scaled layers when necessary.

Users can add their own clustering using the following commands:

colData(sce)$group_name <- group
# OR
sce[["group_name"]] <- group

12.2 Running CCI

Wrapper function for unified CCI analysis. Behind the scenes, it extracts standardized ligand-receptor interactions into the state tree. By default, keep_object = FALSE to prevent the SingleCellExperiment object from bloating with massive third-party objects.

Here we set keep_object = TRUE purely because we want to demonstrate the legacy CellChat visualization in the final section of this chapter.

library(sclet)

# use the bundled pancreas SCE demo object
sce <- readRDS("data/pancreas_sub_sce.rds")
sce <- RunCCI(sce, method = "CellChat", group = "CellType", layer = "logcounts", name = "cellchat_main", species = "mouse", keep_object = TRUE)

## Registered S3 method overwritten by 'ggnetwork':
##   method         from
##   fortify.igraph ggtree

## [1] "Create a CellChat object from a data matrix"

## Set cell identities for the new CellChat object
## The cell groups used for CellChat analysis are  Ductal, Ngn3 low EP, Ngn3 high EP, Pre-endocrine, Endocrine
## The number of highly variable ligand-receptor pairs used for signaling inference is 342
## triMean is used for calculating the average gene expression per cell group.
## [1] ">>> Run CellChat on sc/snRNA-seq data <<< [2026-06-15 03:31:36.483255]"
## [1] ">>> CellChat inference is done. Parameter values are stored in `object@options$parameter` <<< [2026-06-15 03:31:45.644519]"

After running RunCCI(), the updated SCE keeps a structured communication record. This is useful when you want downstream code to check has_cci(sce) or inspect the standardized interactions data frame through get_cci(sce).

# Extract the standardized interactions data.frame
cci_df <- get_cci(sce)
head(cci_df)

##   source_group target_group ligand receptor pathway
## 1       Ductal       Ductal   Igf2    Igf1r     IGF
## 2  Ngn3 low EP       Ductal   Igf2    Igf1r     IGF
## 3 Ngn3 high EP       Ductal   Igf2    Igf1r     IGF
## 4       Ductal  Ngn3 low EP   Igf2    Igf1r     IGF
## 5  Ngn3 low EP  Ngn3 low EP   Igf2    Igf1r     IGF
## 6 Ngn3 high EP  Ngn3 low EP   Igf2    Igf1r     IGF
##    probability p_value   method
## 1 7.371325e-08       0 CellChat
## 2 7.371325e-08       0 CellChat
## 3 7.371325e-08       0 CellChat
## 4 7.371325e-08       0 CellChat
## 5 7.371325e-08       0 CellChat
## 6 7.371325e-08       0 CellChat

If you keep multiple communication runs in the same object, give them different name values and inspect a specific record with get_cci(sce, id = "your_id").

12.3 Using Alternative Backends (CellPhoneDB & NicheNet)

sclet acts as a unified adapter. You can easily switch to other popular CCI backends without changing your downstream data extraction or visualization code.

12.3.1 CellPhoneDB

CellPhoneDB is an established method that relies on a curated database of ligands and receptors. Through sclet, it runs directly via Python integration (basilisk):

# Run CellPhoneDB analysis
sce <- RunCCI(
    sce,
    method = "CellPhoneDB",
    group = "CellType",
    species = "mouse", # will attempt ortholog mapping internally
    name = "cellphonedb_main",
    threads = 2
)

# Extract standard results
cpdb_df <- get_cci(sce, id = "cellphonedb_main")
head(cpdb_df)

12.3.2 NicheNet

While CellChat and CellPhoneDB focus on ligand-receptor pairs, NicheNet takes it a step further by predicting which ligands from sender cells regulate specific gene sets (e.g., DEGs) in receiver cells.

NicheNet requires pre-downloaded prior models (ligand-target matrix, etc.).

# Load NicheNet prior models (you must download these first)
ligand_target_matrix <- readRDS("ligand_target_matrix.rds")
lr_network <- readRDS("lr_network.rds")
weighted_networks <- readRDS("weighted_networks.rds")

# Run NicheNet to find ligands from Endocrine cells affecting Epithelial cells
sce <- RunCCI(
    sce,
    method = "NicheNet",
    group = "CellType",
    receiver = "Epithelial",
    sender = "Endocrine",
    # If genes_oi is NULL, sclet automatically finds DEGs for the receiver cluster
    ligand_target_matrix = ligand_target_matrix,
    lr_network = lr_network,
    weighted_networks = weighted_networks,
    name = "nichenet_main",
    top_n_ligands = 20
)

nichenet_df <- get_cci(sce, id = "nichenet_main")
head(nichenet_df)

12.4 Visualization

Instead of relying heavily on third-party specific visualization functions, sclet provides native ggplot2 and circlize based visualization functions that directly consume the standardized CCI data layer. This decouples your analysis from specific backend plotting idiosyncrasies.

# Native Bubble plot for specific cell pairs
plot_cci_bubble(sce, sources = c("Ductal", "Endocrine"), targets = c("Ductal", "Endocrine"))

# Native Chord diagram for specific pathways
plot_cci_chord(sce, signaling = c("PTN"))

# Native Sigmoid plot for interactions
plot_cci_sigmoid(sce, top_n = 15)

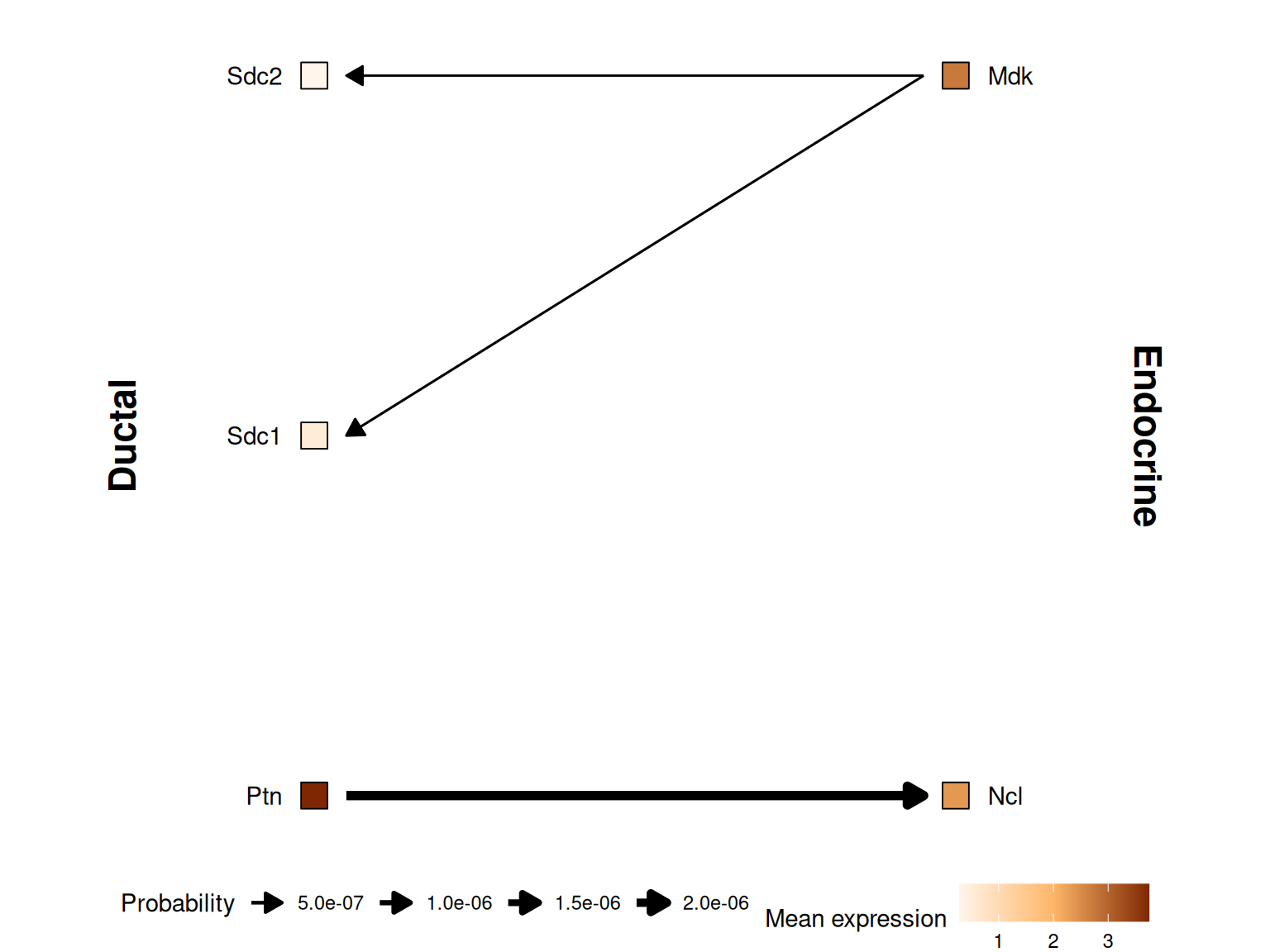

# Native Arrow plot between specific cell types
plot_cci_arrow(sce, cell_a = "Ductal", cell_b = "Endocrine", group = "CellType", top_n = 10)

12.4.1 Legacy CellChat Visualization

If you still need the full power of CellChat’s specific visualizations, you can retrieve the original CellChat object and use it directly.

# Retrieve the original CellChat object if you need legacy plots
cci_obj <- get_cellchat(sce, element = "object")

library(aplot)
groupSize <- as.numeric(table(cci_obj@idents))
plot_list(
    ~CellChat::netVisual_circle(cci_obj@net$count,
        vertex.weight = groupSize, weight.scale = T,
        label.edge= F, title.name = "Number of interactions"),
    ~CellChat::netVisual_circle(cci_obj@net$weight,
        vertex.weight = groupSize, weight.scale = T,
        label.edge= F, title.name = "Interaction weights/strength")
)

pathways.show <- c("PTN")
CellChat::netVisual_aggregate(cci_obj, signaling = pathways.show, layout = "circle")

CellChat::netVisual_aggregate(cci_obj, signaling = pathways.show, layout = "chord")

CellChat::netVisual_heatmap(cci_obj, signaling = pathways.show, color.heatmap = "Reds")

## Do heatmap based on a single object

group.cellType <- c(rep("Epithelial", 3), rep("Endocrine", 2)) # grouping cell clusters into Epithelial and Endocrine cells
names(group.cellType) <- levels(cci_obj@idents)
CellChat::netVisual_chord_cell(cci_obj, signaling = pathways.show, group = group.cellType, title.name = paste0(pathways.show, " signaling network"))

## Plot the aggregated cell-cell communication network at the signaling pathway level

CellChat::netAnalysis_contribution(cci_obj, signaling = pathways.show)

pairLR.pathway <- CellChat::extractEnrichedLR(cci_obj, signaling = pathways.show, geneLR.return = FALSE)
LR.show <- pairLR.pathway[1,]
vertex.receiver = seq(1,4)
# CellChat::netVisual_individual(cci_obj, signaling = pathways.show,  pairLR.use = LR.show, vertex.receiver = vertex.receiver)
CellChat::netVisual_individual(cci_obj, signaling = pathways.show, pairLR.use = LR.show, layout = "circle")

## [[1]]

CellChat::netVisual_individual(cci_obj, signaling = pathways.show, pairLR.use = LR.show, layout = "chord")

## [[1]]

CellChat::netVisual_bubble(cci_obj, sources.use = 1:2, targets.use = c(3:5), remove.isolate = FALSE)

## Comparing communications on a single object
